Wood-Aluminium windows TYPE C PLUS ALU-EFFECT
Wood-Aluminium windows TYPE C PLUS ALU-EFFECT
Wood-Aluminium windows TYPE C PLUS ALU-EFFECT
Wood-Aluminium windows TYPE C PLUS ALU-EFFECT
Wood-Aluminium windows TYPE C PLUS ALU-EFFECT
Wood-Aluminium windows TYPE C PLUS ALU-EFFECT
Wood-Aluminium windows TYPE C PLUS ALU-EFFECT
Wood-Aluminium windows TYPE C PLUS ALU-EFFECT

Wood-Aluminium windows TYPE C PLUS ALU-EFFECT

Wood-Aluminium windows TYPE C PLUS ALU-EFFECT

Production time: 1.5 - 2 months
Delivery throughout Europe.
For individual calculation, please inquire by e-mail.

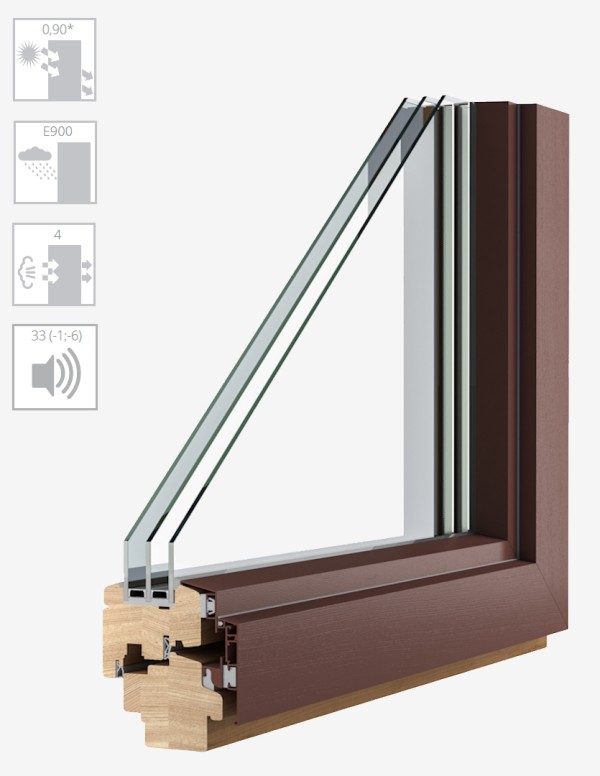

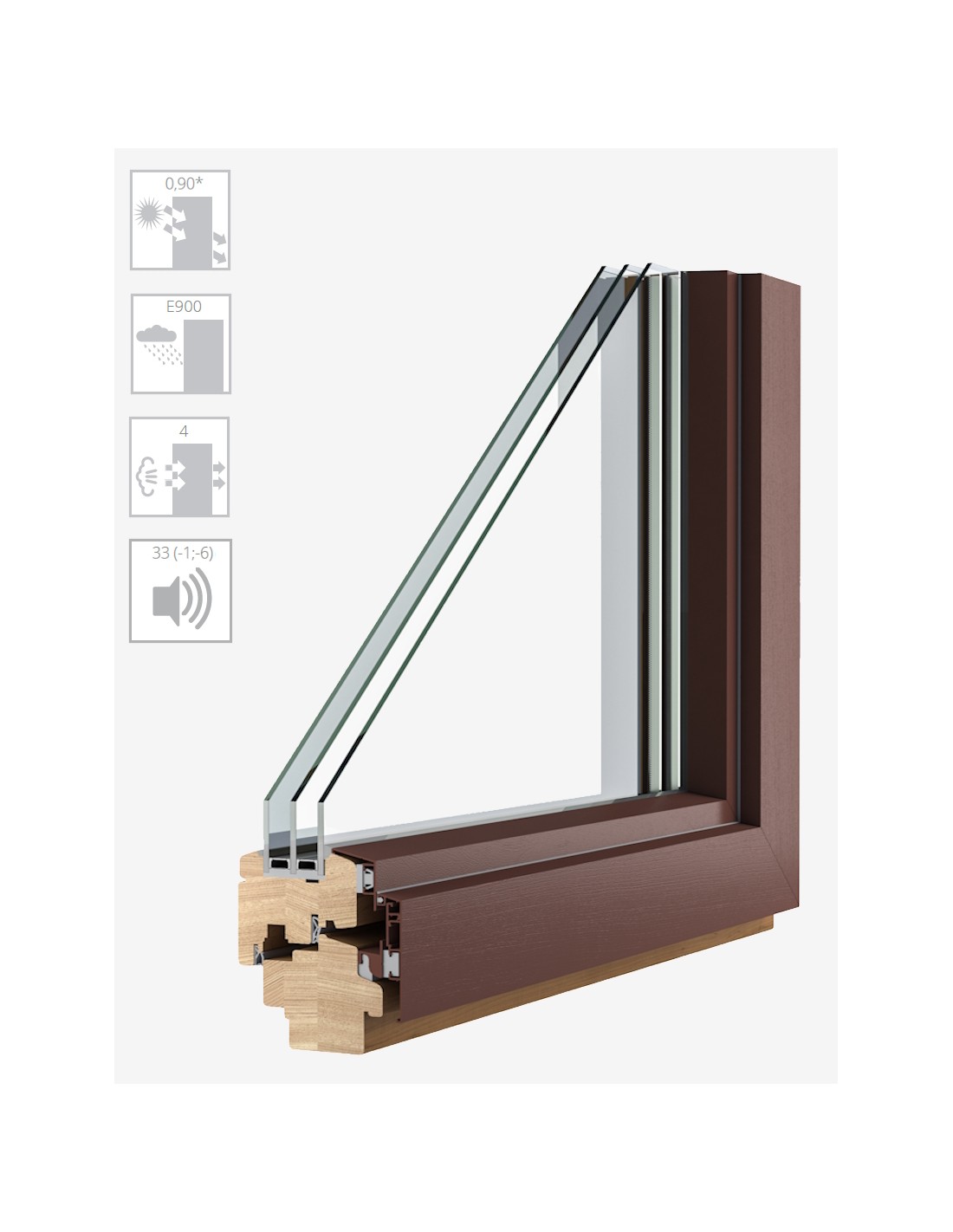

CONSTRUCTION
Single frame window
Window sash thickness - 78 mm.
Window frame thickness - 91 mm.
Glass package fixing strips: C type
Optional opening system: S-System

MATERIAL
Glued laminated pine wood, oak available as an option.

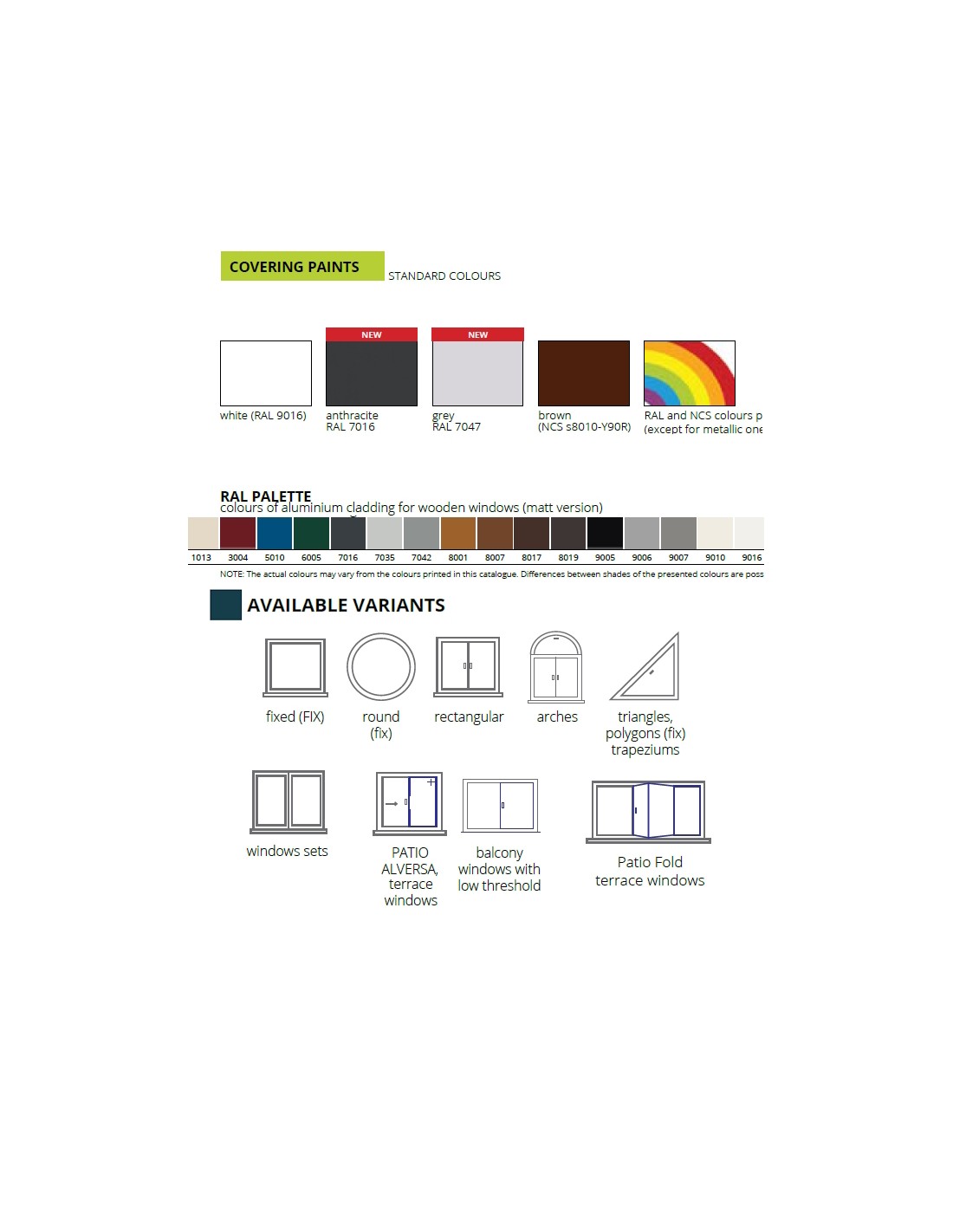

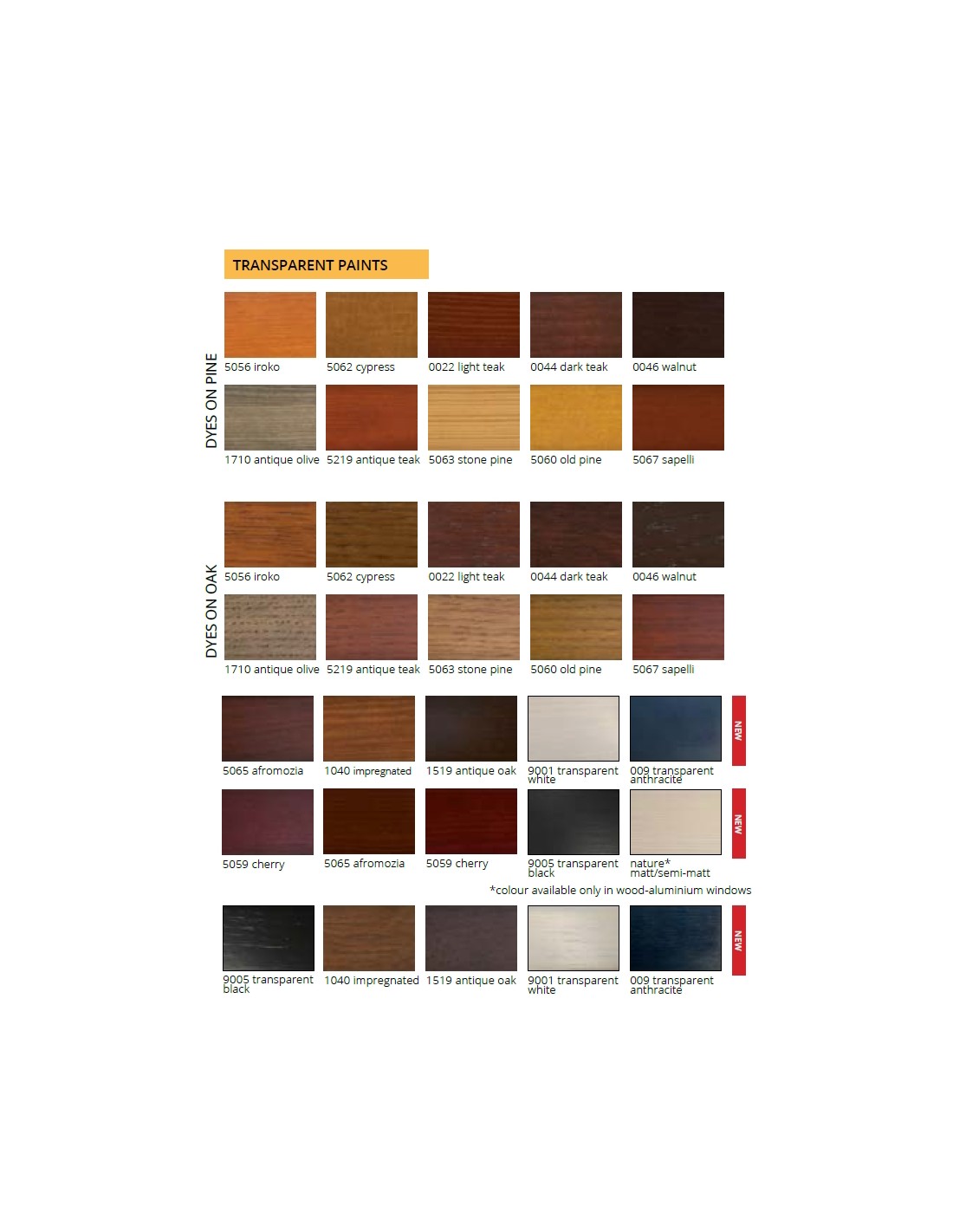

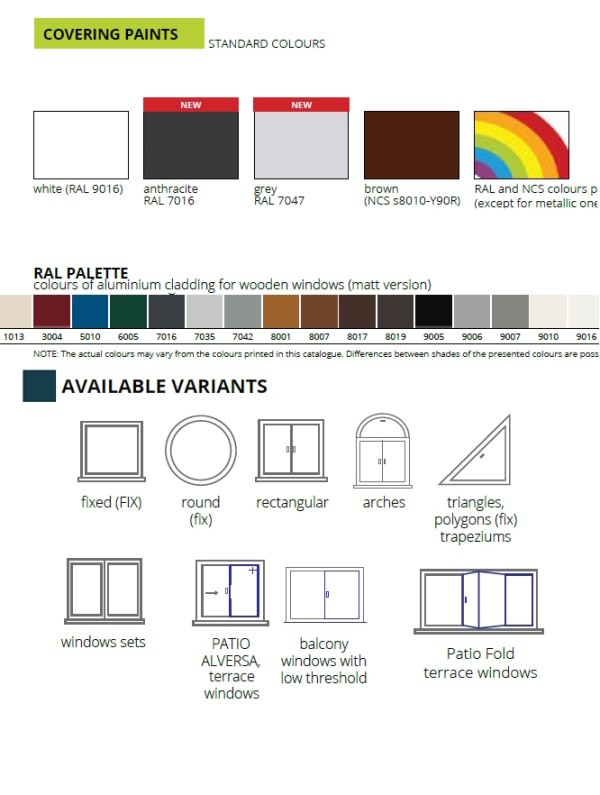

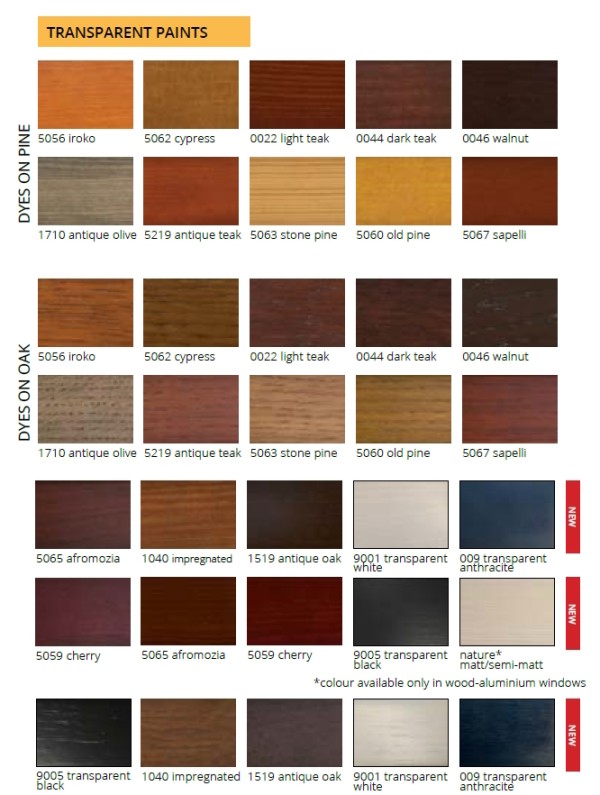

COATING
Water soluble paints (covering or transparent), a three-layer covering system, a four-layer transparent system, powder painted aluminium, the RAL basic colours 9016, 9010, 9007, 9006, 9005, 8019, 8017, 8007, 8001, 7042, 7035, 7016, 6005, 5010, 3004, 1013 the other colours of the RAL palette are available at extra charge.

COMPLETENESS
Triple glazed window 4/14Ar/4/14Ar/4 Ug=0,6 W/m2K with warm edge spacer bars, optional
thermopanel with aluminium sheet on the outside of the balcony windows
Roto NX peripheral fittings with microventilation function (for rectangular Tilt&Turn windows) with three-level adjustment, with
anti-theft protection, handle misplacement lock
Three profile seals available in white or brown
Additional seal between the frame cladding and the sash cladding
Drip and hinge caps.
Aluminium cladding on the outside
Handles

ADDITIONAL ACCESSORIES
Glazing units
Sill plates and heat-insulated window sills
Fitting accessories
Air inlets
Muntins: Vienna, on clasps, inter-pane and structural

PARAMETERS
Thermal transmittance*: 0,90 W/(m2K)
Water tightness: E900
Air permeability: 4
Acoustic properties: 33 (-1;-6)

(*) The provided values of the heat and acoustic insulation apply to the reference window with the dimensions of 1,23 x 1,48 m

Warranty up to 5 years - detailed conditions can be found in the documentation attached to the product.

DOUBLE GLAZED Ug = 1,0 W/m2K
4mm FLOAT/16 Ar/THERMOFLOAT 1,0, Ug=1,0 W/m2K g=54%, Lt=76 %

TRIPLE GLAZED Ug = 0,8 W/m2K
THERMOFLOAT 1,1 4mm/10 Ar/FLOAT 4mm/10 Ar/THERMOFLOAT 1,1 4mm, Ug=0,8 W/m2K g=52%, Lt =74%

TRIPLE GLAZED Ug = 0,6 W/m2K
Thermofloat 1,0 4mm/14 Argon/Float 4mm/14 Argon/ Thermofloat 1,0 4mm, Ug=0,6 W/m2K g=41%, Lt=65 %
arba
Thermofloat 1,1 4mm/14 Argon/Float 4mm/14 Argon/ Thermofloat 1,1 4mm, Ug=0,6 W/m2K g=52%, Lt=74 %

AVAILABLE OPTIONS:
- SUNSCREENS:+
STOPSOL - solar control glass reduces the amount of heat energy from the sun, reflective coating for greater privacy, available in grey, brown, blue and clear.
ANTISOL - solar control glass, which reduces the transmission of solar energy, thus preventing overheating of rooms. Available in the following colour variants:
grey, brown, blue and green.
COMBI NEUTRAL - selective glass characterised by low solar energy transmittance (g) in relation to solar light transmittance (Lt). The best possible use of daylight
and sunlight thanks to high natural light transmission, colour neutrality and colour fidelity.
ANTISOL - solar control glass, which reduces the transmission of solar energy, thus preventing overheating of rooms. Available in the following colour variants:
grey, brown, blue and green.
MIRASTAR - glass with a "Venetian mirror" effect.

SAFETY GLAZING:
WITH TOUGHENEd glass - provides high resistance to impact with a soft body, up to 5 times greater than standard non-toughened glass of the same thickness. When
broken they shatter into many small and tiny pieces, just like a car windscreen.
LAMINATED GLASS - provides effective anti-burglary properties. Laminated glass consists of two or more panes of glass with internal 0,38 mm thick PVB films.
Depending on the combination and the number and thickness of the individual panes of glass and PVB films, laminated glass can be produced with different
properties. Thanks to an inner layer - a special film - when laminated glass breaks, the film keeps the glass intact, thus providing protection against serious injury.
Laminated glass protects against attempted break-ins, acts of vandalism and even prevents breaking through the glass during a forcible break-in.
SOUNDPROOFING GLAZING:
- UNITS WITH ACOUSTIC INSULATION UP TO 41 dB WHILE MAINTAINING THE COEFFICIENT Ug=0,5 W/m2K
- UNITS WITH SOUND INSULATION OF UP TO 50 DB WITH INCREASED HEAT TRANSFER COEFFICIENT
- GLAZING WITH FUNCTIONAL COATING:
BIOCLEAN GLASS - glass with a durable transparent outer coating with photocatalytic and hydrophilic effects. The natural effects of sun and rain help keep the glass
clean for longer. The glass is also easier to clean.
ANTI-FOG GLASS - glass with a special anti-condensation coating on the outside, thanks to which condensed water vapour settles on the outer pane at a slower pace.
This coating maintains a higher external temperature of the glass, which delays the condensation of water vapour.

IN GLAZING UNITS Ug=1,0 W/m2K AND Ug=0,8 W/m2K TERMO TGI WARM EDGE SPACER BAR AS STANDARD
IN GLAZING UNITS Ug=0,6 W/m2K CHROMATECH WARM EDGE SPACER BAR AS STANDARD AVAILABLE IN COLOURS
