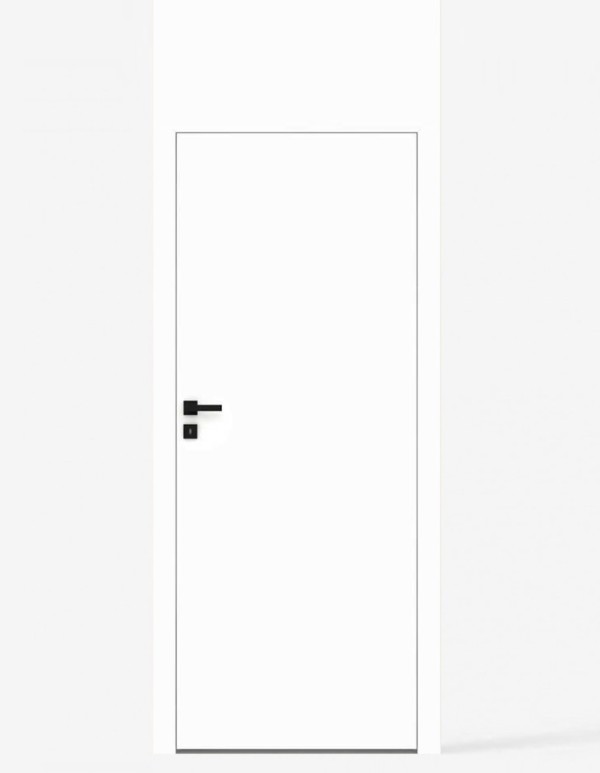

Interior doors "UNI 10" High architraves

Interior doors "UNI 10" High architraves

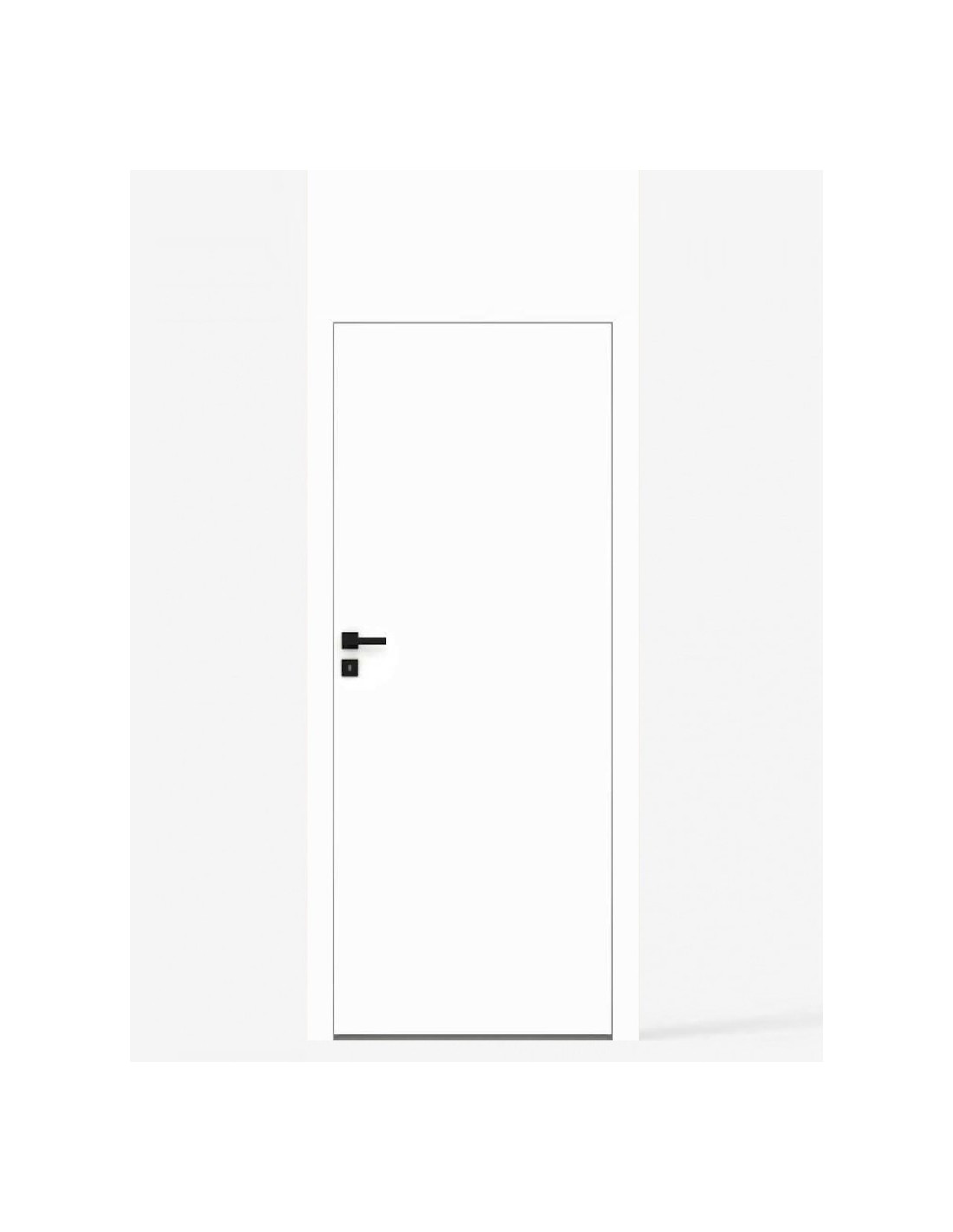

Painted interior door - "UNI 10"

Delivery throughout Europe!

Production and delivery time: 20 - 30 working days

EXTERNAL DIMENSIONS OF THE LEAF WITH ADJUSTABLE FRAME

LEAF WIDTH	WIDTH WITH FRAME	DOORWAY WIDTH
64.4 cm	66,4 cm	min. 68 cm
74,4 cm	76,4 cm	min. 78 cm
84,4 cm	86,4 cm	min. 88 cm
94,4 cm	96,4 cm	min. 98 cm

LEAF HEIGHT	HEIGHT WITH FRAME	DOORWAY HEIGHT
204,3 cm	205,1 cm	min. 206,6 cm
198,3 cm	199,1 cm	min. 200,6 cm

------------------------------------------------------------------------------

EXTERNAL DIMENSIONS OF LEAF WITH NON-ADJUSTABLE FRAME

LEAF WIDTH	WIDTH WITH FRAME	DOORWAY WIDTH
64.4 cm	68,8 cm	min. 71,2 cm
74,4 cm	78,8 cm	min. 81,2 cm
84,4 cm	88,8 cm	min. 91,2 cm
94,4 cm	98,8 cm	min. 101,2 cm

LEAF HEIGHT	HEIGHT WITH FRAME	DOORWAY HEIGHT
204,3 cm	207,3 cm	min. 208,9 cm
198,3 cm	201,3 cm	min. 202,9 cm

------------------------------------------------------------------------------

EXTERNAL DIMENSIONS OF THE LEAF WITH ADJUSTABLE FRAME

LEAF WIDTH	WIDTH WITH FRAME	DOORWAY WIDTH
64,4 cm	67,1 cm	min. 71 cm
74,4 cm	77,1 cm	min. 81 cm
84,4 cm	87,1 cm	min. 91 cm
94,4 cm	97,1 cm	min. 101 cm

LEAF HEIGHT	HEIGHT WITH FRAME	DOORWAY HEIGHT
204,3 cm	206,4 cm	min. 207,9 cm
198,3 cm	200,4 cm	min. 201,9 cm

------------------------------------------------------------------------------

EXTERNAL DIMENSIONS OF LEAF WITH NON-ADJUSTABLE FRAME

LEAF WIDTH	WIDTH WITH FRAME	DOORWAY WIDTH
64,4 cm	70,7 cm	min. 71,2 cm
74,4 cm	80,7 cm	min. 81,2 cm
84,4 cm	90,7 cm	min. 91,2 cm
94,4 cm	100,7 cm	min. 101,2 cm

LEAF HEIGHT	HEIGHT WITH FRAME	DOORWAY HEIGHT
204,3 cm	208,2 cm	min. 209,7 cm
198,3 cm	202,2 cm	min. 203,7 cm

------------------------------------------------------------------------------

EXTERNAL DIMENSIONS OF THE LEAF WITH ADJUSTABLE FRAME

LEAF WIDTH	WIDTH WITH FRAME	DOORWAY WIDTH
64,4 cm	67,1 cm	min. 71 cm
74,4 cm	77,1 cm	min. 81 cm
84,4 cm	87,1 cm	min. 91 cm
94,4 cm	97,1 cm	min. 101 cm

LEAF HEIGHT	HEIGHT WITH FRAME	DOORWAY HEIGHT
204,3 cm	206,4 cm	min. 207,9 cm

------------------------------------------------------------------------------

EXTERNAL DIMENSIONS OF LEAF WITH NON-ADJUSTABLE FRAME

LEAF WIDTH	WIDTH WITH FRAME	DOORWAY WIDTH
64,4 cm	70,7 cm	min. 71,2 cm
74,4 cm	80,7 cm	min. 81,2 cm
84,4 cm	90,7 cm	min. 91,2 cm
94,4 cm	100,7 cm	min. 101,2 cm

LEAF HEIGHT	HEIGHT WITH FRAME	DOORWAY HEIGHT
204,3 cm	208,2 cm	min. 209,7 cm

------------------------------------------------------------------------------

EXTERNAL DIMENSIONS OF THE LEAF WITH ADJUSTABLE FRAME

LEAF WIDTH	WIDTH WITH FRAME	DOORWAY WIDTH
64,4 cm	67,1 cm	min. 71 cm
74,4 cm	77,1 cm	min. 81 cm
84,4 cm	87,1 cm	min. 91 cm
94,4 cm	97,1 cm	min. 101 cm

LEAF HEIGHT	HEIGHT WITH FRAME	DOORWAY HEIGHT
204,3 cm	206,4 cm	min. 207,9 cm
198,3 cm	200,4 cm	min. 201,9 cm

224 cm

226,1 cm

min. 227,6 cm

EXTERNAL DIMENSIONS OF THE LEAF WITH ADJUSTABLE FRAME

LEAF WIDTH	WIDTH WITH FRAME	DOORWAY WIDTH
62,5 cm	64,6 cm	min. 67,6 cm
72,5 cm	74,6 cm	min. 77,6 cm
82,5 cm	84,6 cm	min. 87,6 cm
92,5 cm	94,6 cm	min. 97,6 cm

LEAF HEIGHT	HEIGHT WITH FRAME	DOORWAY HEIGHT
202 cm	204,3 cm	min. 205,3 cm
197 cm	199,3 cm	min. 200,3 cm

------------------------------------------------------------------------------

EXTERNAL DIMENSIONS OF LEAF WITH NON-ADJUSTABLE FRAME

LEAF WIDTH	WIDTH WITH FRAME	DOORWAY WIDTH
62,5 cm	68,9 cm	min. 70,9 cm
72,5 cm	78,9 cm	min. 80,9 cm
82,5 cm	88,9 cm	min. 90,9 cm
92,5 cm	98,9 cm	min. 100,9 cm

LEAF HEIGHT	HEIGHT WITH FRAME	DOORWAY HEIGHT
202 cm	206,4 cm	min. 207,4 cm
197 cm	201,4 cm	min. 202,4 cm

------------------------------------------------------------------------------

EXTERNAL DIMENSIONS OF THE LEAF WITH ADJUSTABLE FRAME

LEAF WIDTH	WIDTH WITH FRAME	DOORWAY WIDTH
65,5 cm	69,4 cm	min. 72,4 cm
75,5 cm	79,4 cm	min. 82,4 cm
85,5 cm	89,4 cm	min. 92,4 cm
95,5 cm	99,4 cm	min. 102,4 cm

LEAF HEIGHT	HEIGHT WITH FRAME	DOORWAY HEIGHT
205,5 cm	208,8 cm	min. 206,6 cm
198,1 cm	201,4 cm	min. 202,9 cm

Opening direction

Filling

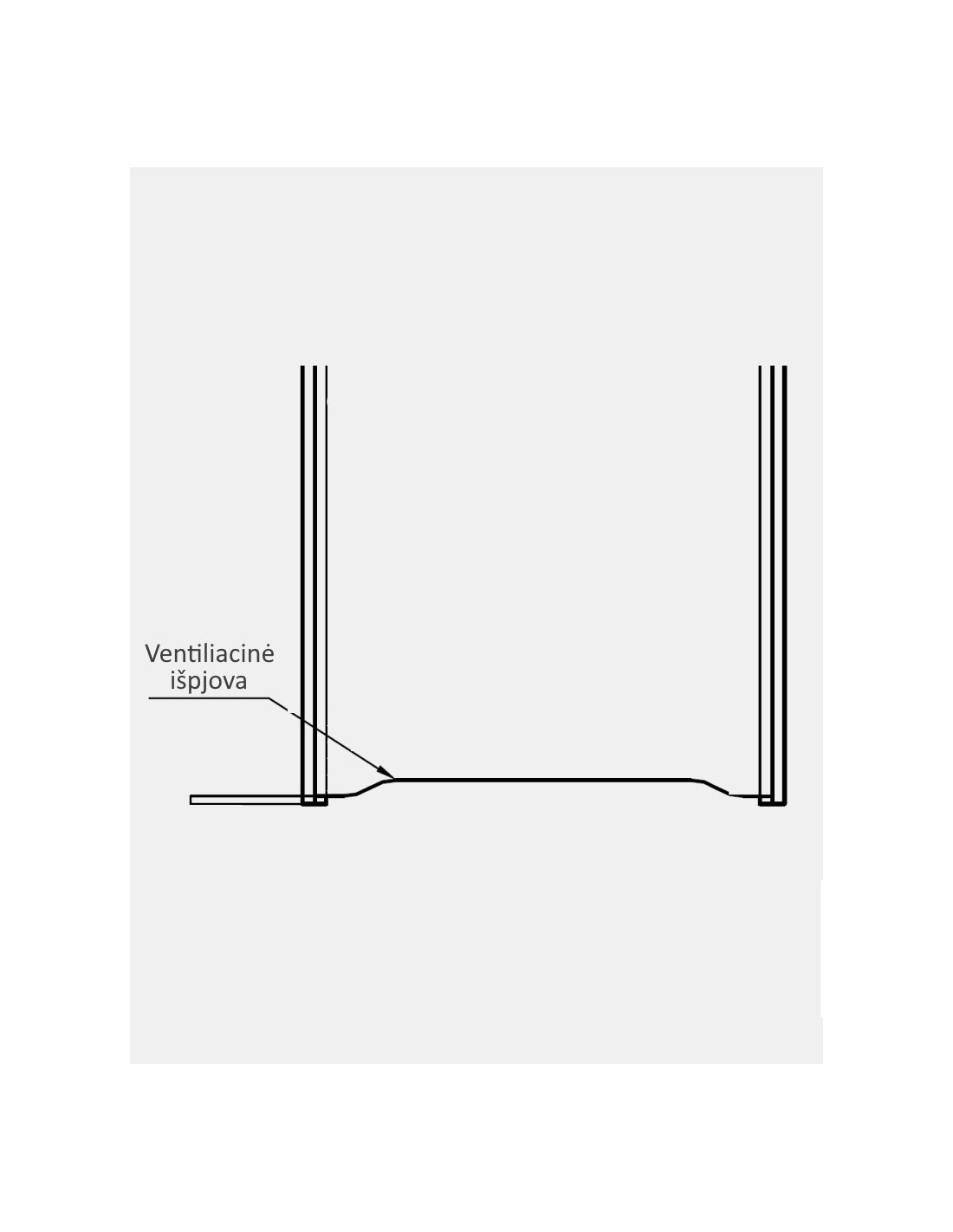

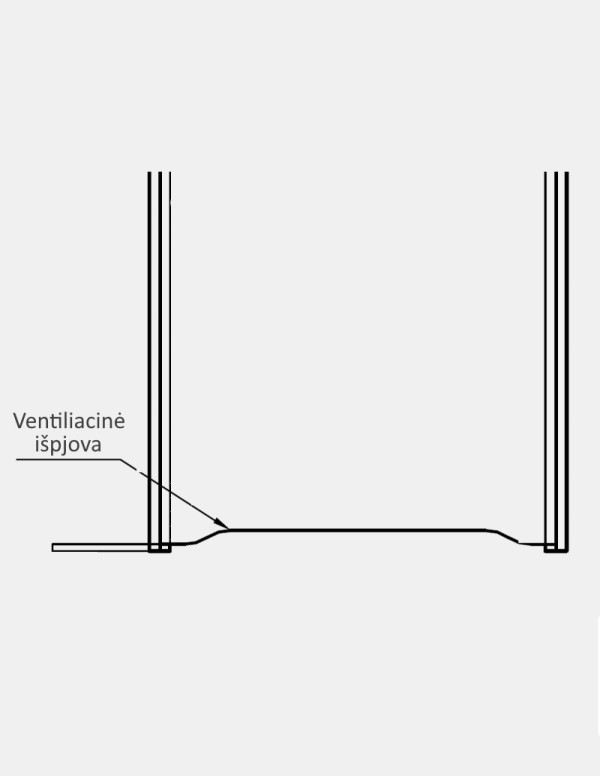

Ventilation

Color

Door leaf width

Door frame

Lock

Architraves

€580.00

Tax included

Product Options

Color

Door leaf width

Opening direction

Door frame

Architraves

Filling

Ventilation

Lock

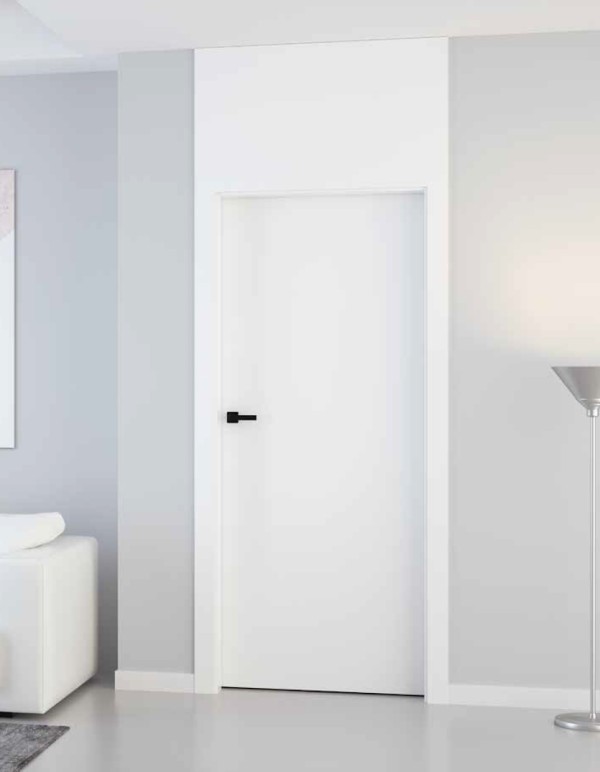

"UNI" - the door will enhance any interior and make it modern. Doors can be painted white, ecru, latte and gray. These colors will brighten anyone up wonderfully. The applied UV varnish is well protected against mechanical damage to the surface of the shutters, and thanks to the UV technology used, the varnish has excellent resistance to the harmful effects of sunlight. The doors have a wide range of options and can be customized according to your needs, both in a wide range of sizes and as sliding and double doors.

COATING: Doors painted with acrylic UV varnish. To ensure the highest quality of painted products, before painting process,
both, door leaf and door frames are coated with special material which constitues solid base.

DESCRIPTION OF THE LEAF
The frame of the door leaf frame made of MDF. Filling - stabilising insert "honeycomb". Door leaf non-rebated.

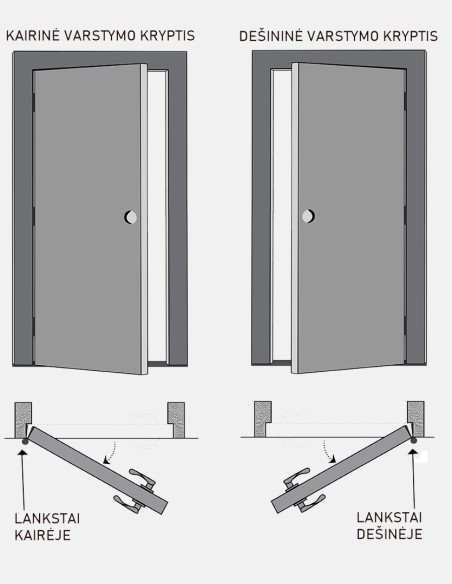

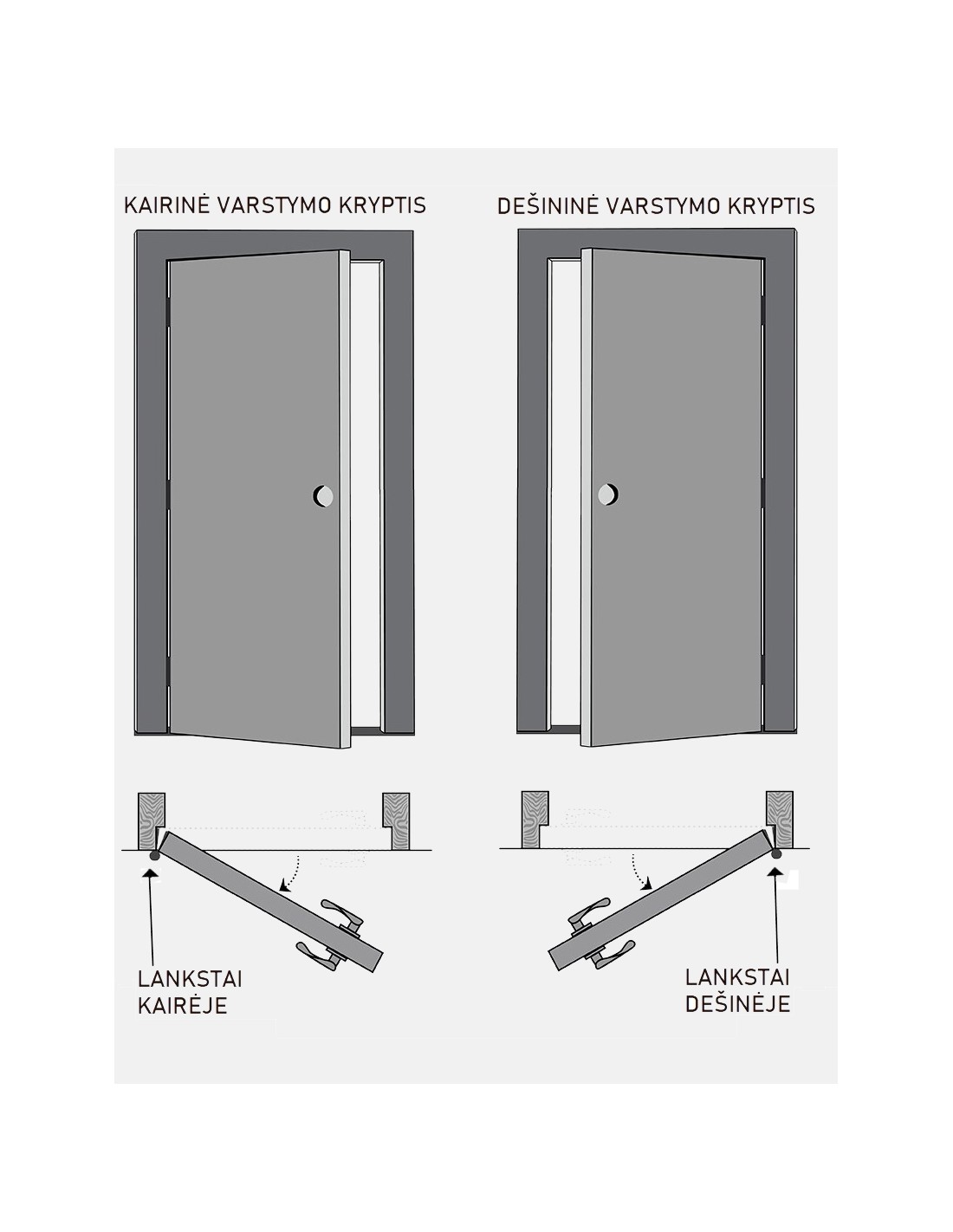

OPENING DIRECTION: Selectable for "left" or "right" opening.

DESCRIPTION OF THE FRAME
The door frame is made of high quality MDF. Frame with sealing gasket. Ready for installation.
Adjustable and non-adjustable frame can be selected. The adjustable frame is equipped with architraves on both sides, the width of the frame can be selected according to the thickness of the wall, it can be used for walls with a thickness of 75-320 mm.

IN STANDARD DOOR SET
Non-rebated door leaf, frame with sealing gasket, magnetic lock, concealed hinges.
The adjustable frame comes complete with architraves on both sides.

ADDITIONALLY CAN BE ORDERED: A set of handles; WC lock; Cylindrical lock with cover.

Door leaf type: Non-rebated
Coating: Painted
Door leaf height: 204,3 cm
Height with frame: 206,4 cm
Installation height: 207 - 213 cm
Door leaf width: 64,4 | 74,4 | 84,4 | 94,4 cm
Width with frame: 67,1 | 77,1 | 87,1 | 97,1 cm
Installation width: 70 - 80 cm | 80 - 90 cm | 90 - 100 cm | 100 - 110 cm
Glass: Without glass
Hinges: Concealed hinges
Warranty: 2 years
Delivery time: 20 - 30 working days

DOOR LEAF DIMENSIONS
The door leaf of this model are produced in heights of 2043 mm, and can be installed in openings with a height of 2070 - 2130 mm.
Height: 204,3 cm
Width: 64,4 cm; 74,4 cm; 84,4 cm; 94,4 cm.
Thickness: 4 cm.

ADJUSTABLE FRAME DIMENSIONS
Width: 7,5 - 32 cm. (for walls up to 32 cm thick. For thicker walls, it can be equipped with a frame extension)
Thickness: 2,2 cm

EXTERNAL DIMENSIONS OF THE LEAF WITH ADJUSTABLE FRAME
Height: 206,4 cm. (204,3 cm height door leaf)
Width: 67,1 cm; 77,1 cm; 87,1 cm; 97,1 cm
*RECOMMENDED HOLE DIMENSIONS:
*Height: min. 207 cm (204,3 cm height door leaf)
*Width: min. 71 cm; 81 cm; 91 cm; 101 cm

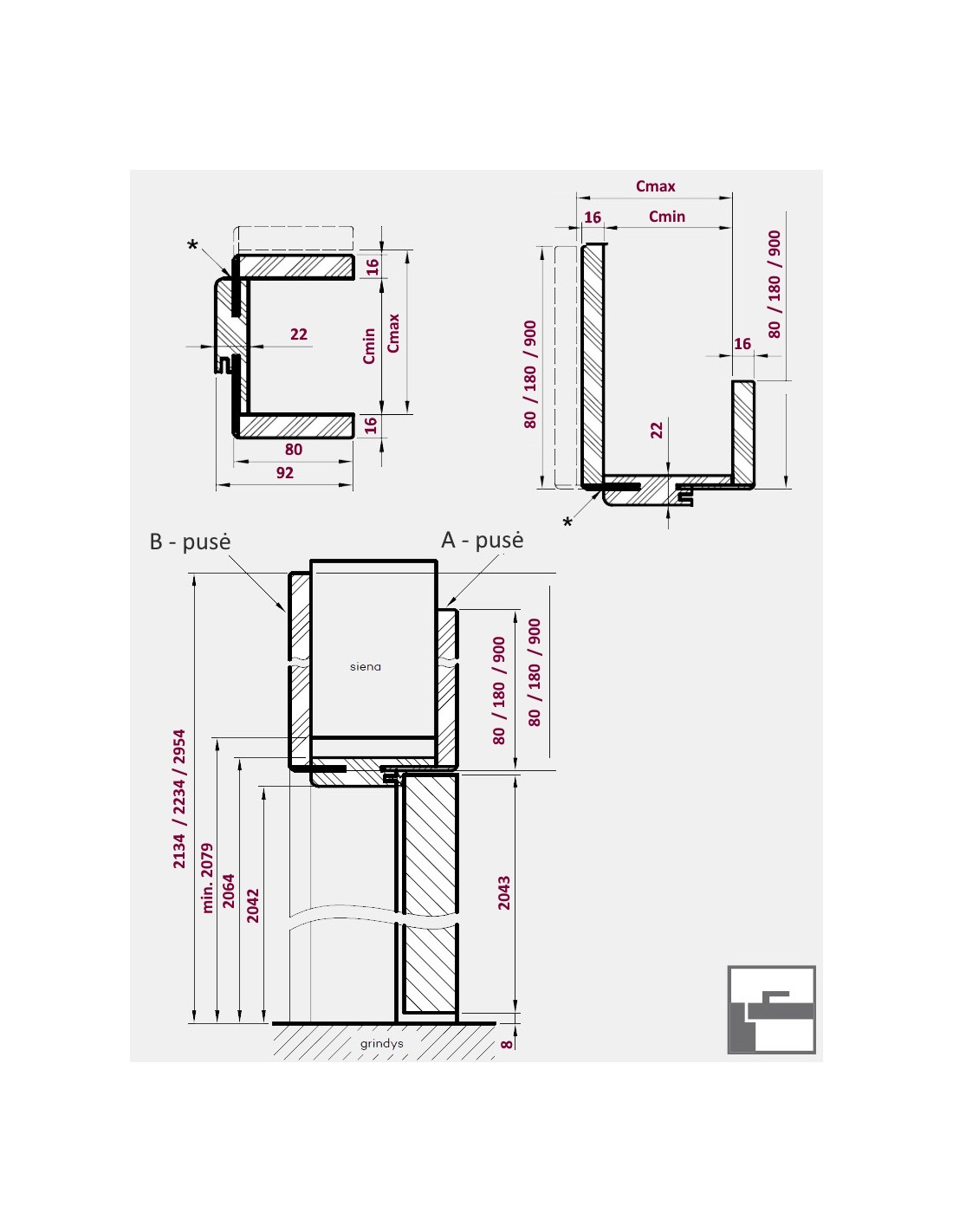

DESCRIPTION OF ARCHITRAVES
Adjustable "L" shaped architraves are made of MDF.
Width: 8; 18; 90 cm
Thickness: 1,6 cm.

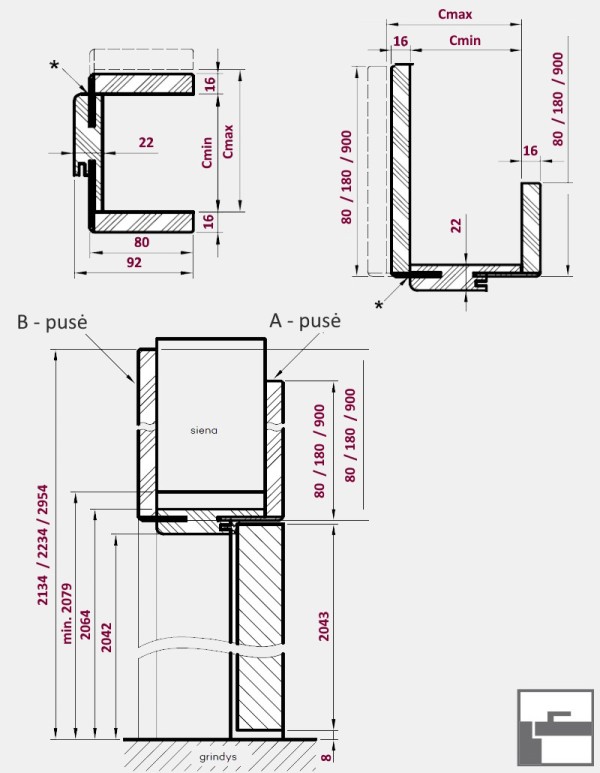

EXTERNALLY ADJUSTABLE FRAME ARCHITRAVES DIMENSIONS
Height: 213,4 cm (204,3 cm height door leaf, 80 mm architraves)
Height: 223,4 cm (204,3 cm height door leaf, 180 mm architraves)
Height: 295,4 cm (204,3 cm height door leaf, 900 mm architraves)
Width: 81,1 cm; 91,1 cm; 101,1 cm; 111,1 cm.

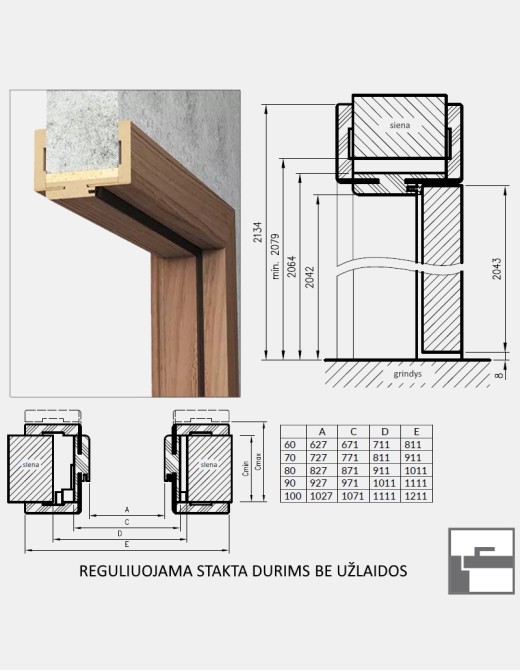

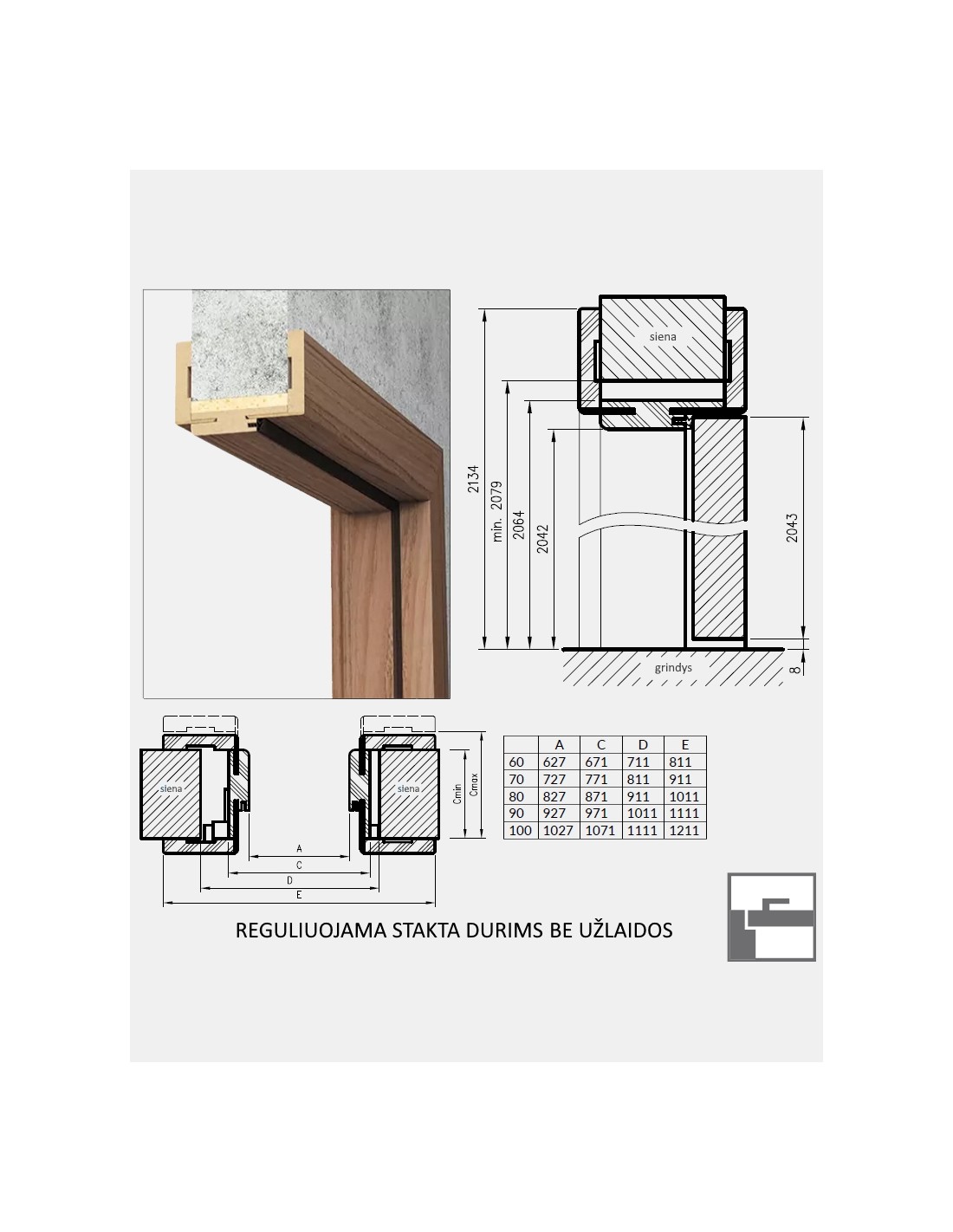

Reguliuojama stakta durims be užlaidos
