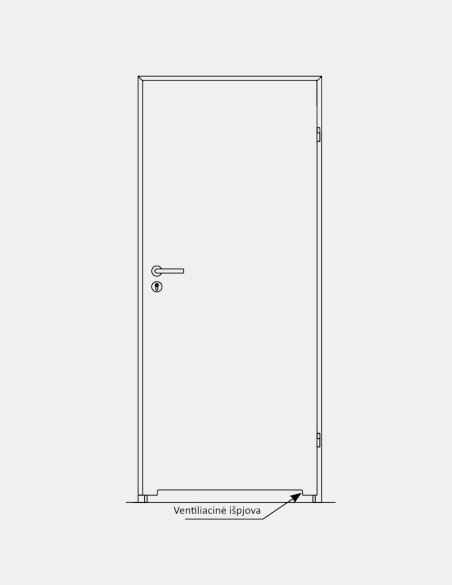

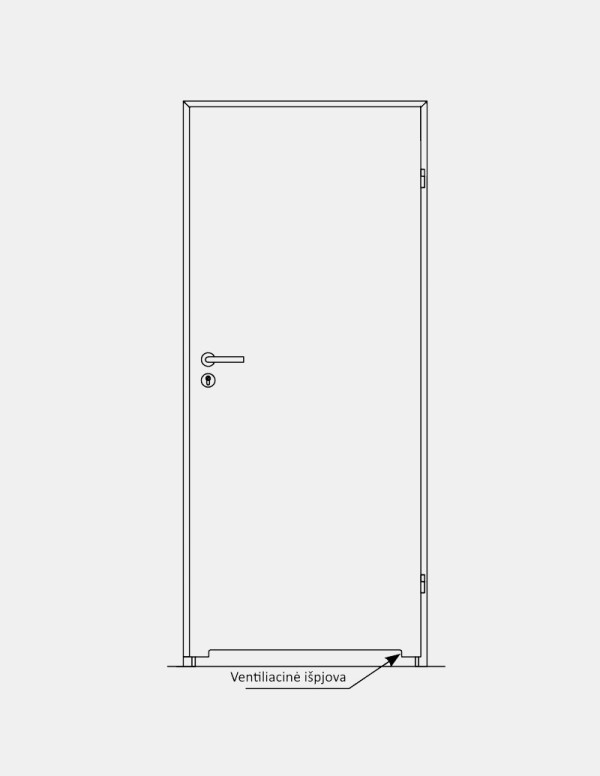

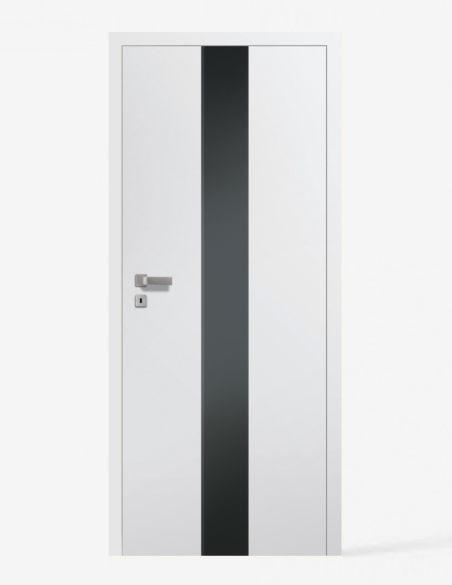

"ESTATO A02B" Internal doors. Non-rebated

ADJUSTABLE DOOR FRAME DIMENSIONS
Width: 75 - 320 mm.
Thickness: 22 mm

EXTERNAL DIMENSIONS OF THE DOOR LEAF WITH ADJUSTABLE FRAME
Height: 1943 mm (1920 mm door leaf)
Height: 1993 mm (1970 mm door leaf)
Height: 2043 mm (2020 mm door leaf)
Height: 2093 mm (2070 mm door leaf)
Height: 2143 mm (2120 mm door leaf)
Height: 2193 mm (2170 mm door leaf)
Height: 2243 mm (2220 mm door leaf)
Width: 652 mm; 752 mm; 852 mm; 952 mm; 1052 mm.
*The opening in the wall should be no lower than 1943 mm (1920 mm door leaf), no lower than 2243 mm (2220 mm door leaf), no narrower than 660 mm. The architraves can cover up to 2013 mm (1920 mm door leaf), 2313 mm (2220 mm door leaf) high wall opening.

DESCRIPTION OF THE DOOR ARCHITRAVES
Adjustable "L" shaped door architraves are made of MDF.
Width: 80 mm. Thickness: 16 mm.

EXTERNALLY ADJUSTABLE DOOR ARCHITRAVES DIMENSIONS
Height: 2013 mm (1920 mm door leaf)
Height: 2063 mm (1970 mm door leaf)
Height: 2113 mm (2020 mm door leaf)
Height: 2163 mm (2070 mm door leaf)
Height: 2213 mm (2120 mm door leaf)
Height: 2263 mm (2170 mm door leaf)
Height: 2313 mm (2220 mm door leaf)
Width: 794 mm; 894 mm; 994 mm; 1094 mm; 1194 mm.

NON-ADJUSTABLE DOOR FRAME DIMENSIONS
Width: 100 mm.
Thickness: 46 mm.

EXTERNAL DIMENSIONS OF DOOR LEAF WITH NON-ADJUSTABLE FRAME
Height: 2067 mm (1970 mm door leaf)
Height: 2017 mm (2020 mm door leaf)
*Fixed frame only for 1970 and 2020 mm door leaf width.
Width: 701 mm; 801 mm; 901 mm; 1001 mm.
*The opening in the wall should be no lower than 2017 mm (1970 mm door leaf), no lower than 2067 mm (2020 mm door leaf), no narrower than 695 mm. The architraves can cover up to 2070 mm (1970 mm door leaf), 2130 mm (2020 mm door leaf) high wall opening.

NON-ADJUSTABLE DOOR FRAME ARCHITRAVES DIMENSIONS
Width: 80 mm. Thickness: 16 mm.

*If you are not sure which size door leaf to choose - send us the dimensions of the openings by e-mail and we will clarify!

GRUPĖ A   | GRUPĖ B      | GRUPĖ C

GROUP A - White RAL9003.
GROUP B - Grey matt RAL 7047; Beige matt NCS S 2005 Y50R, RAL 9010 matt; RAL 9016 matt.
GROUP C - Black RAL9005; Sky blue matt RAL 5014; Indigo matt RAL 5011; Sage matt NCS S 4010-G50Y.
*For other RAL and NCS colors, contact by e-mail.
