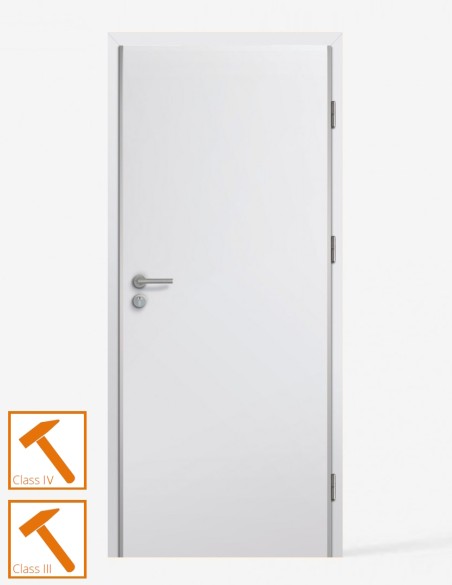

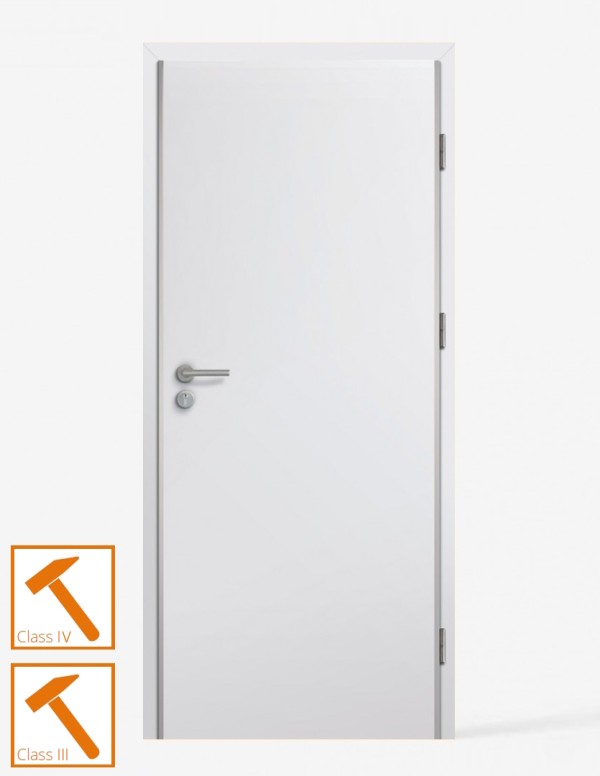

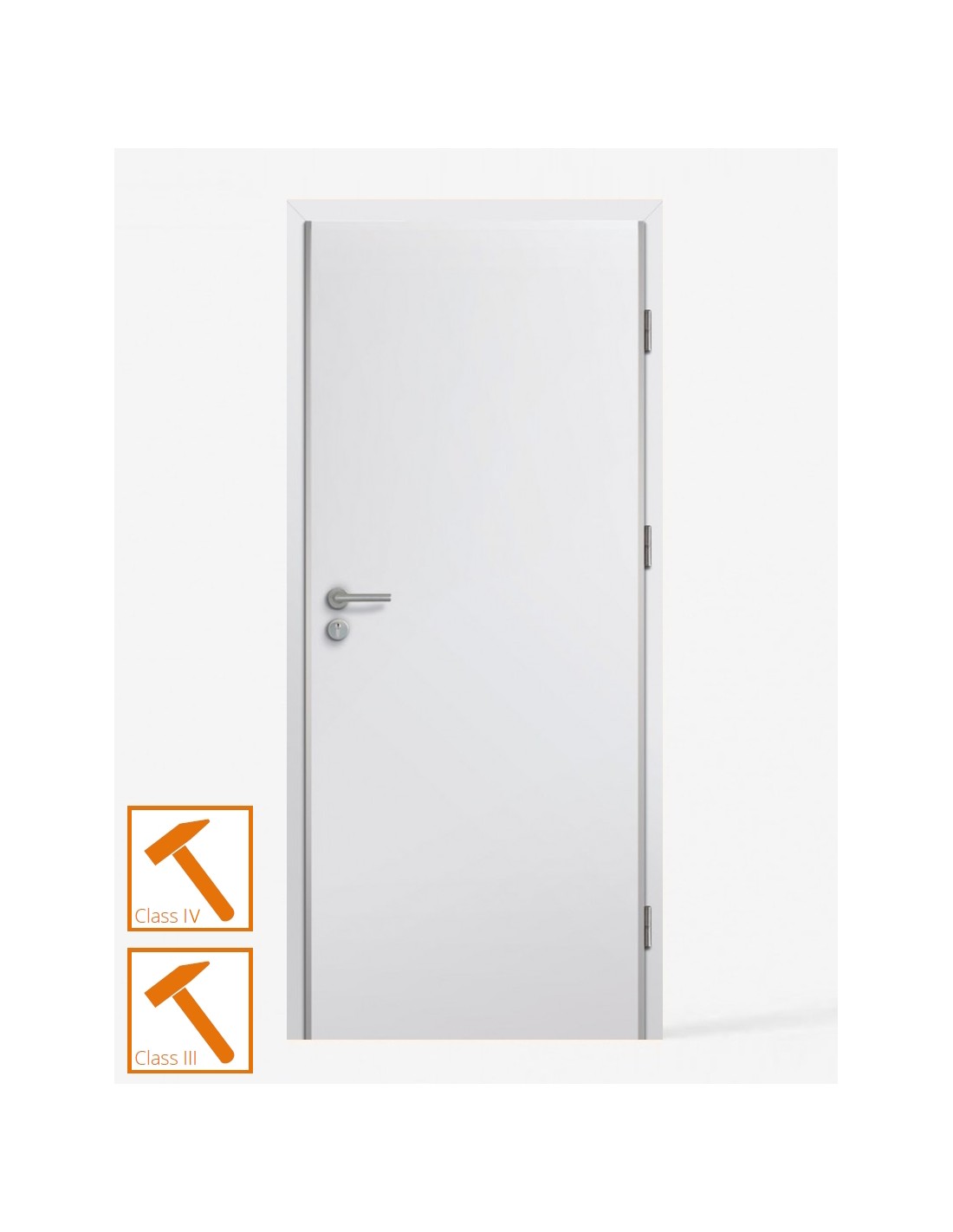

Interior doors "DECO INVEST" Class III mechanical resistance

Reinforced doors DECO INVEST

LEAF CONSTRUCTION:

III MECHANICAL CLASS

The door is made of a coniferous timber frame, clad on both sides with HDF boards, the filling is made of perforated chipboard. Door leaf edge protected by a stainless steel profile. FD12 fixed metal frame, optionally adjustable. The door is of mechanical class 3.

PARAMETERS:

• 3 mechanical class (single leaf doors)
• 2 mechanical class (double-leaf doors)
• Technical approval AT-15-6411/2016

STANDARD EQUIPMENT:

• mortise lock with stainless steel face plate WK, WB and WC versions
• reinforced three-piece hinges type T (‘70’-‘110’ - 3 pcs.)
• reinforcement for the door closer
• stainless steel protection of the sash edge (lock side and hinge side)

FRAMES:

• Powder coated frame as standard in white (RAL 9016, 9003), grey (RAL 7047), brown (RAL 8014), beige (RAL 1001), graphite (RAL 7024).
• Fixed metal FD12 made of 1.5 mm thick steel sheet with rebate seal.
• Adjustable metal made of 1.5 mm thick sheet steel (at an extra charge).

FINISHES:

• Plain surface covered with the CPL 0.15 laminate (LAMISTONE);
• CPL 0.2; CPL 0.5; CPL 0.7 or 0.8 mm thick HPL. 0.8 mm. *Contact by email.

DOOR DIMENSIONS:

• Adjustable metal frame DECO INVEST (ZO):
  Single leaf door:
  max. width: ‘110’ - 1220 mm, max. height: 2278 mm

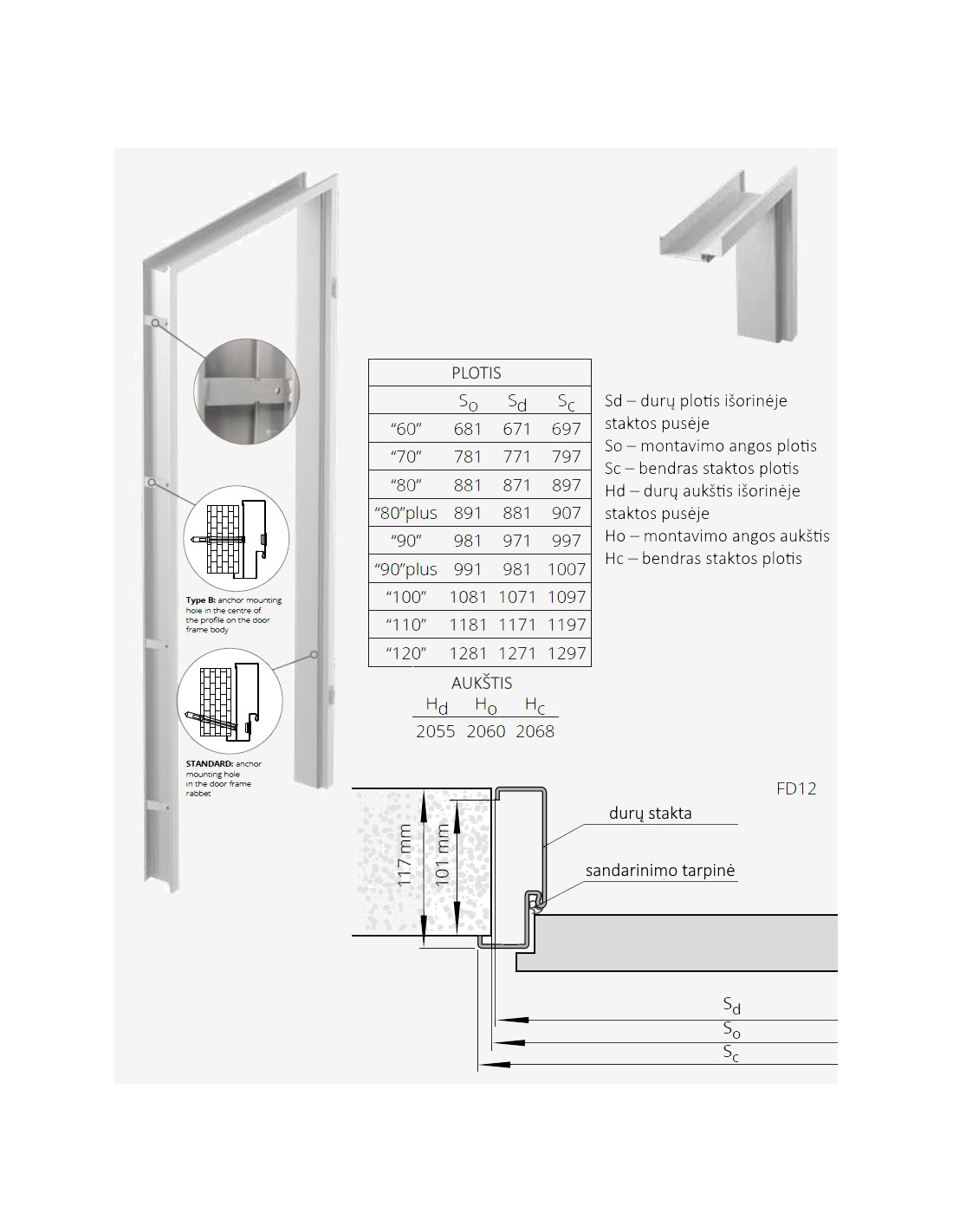

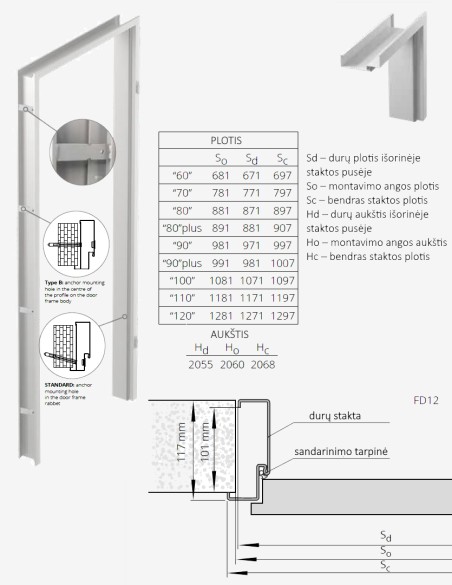

• Fixed metal frame DECO INVEST (FD12):
  Single leaf door:
  max. width: ‘110’ - 1200 mm, max. height 2268 mm

ADDITIONAL EQUIPMENT:

• 4th mechanical class
• overhead door closer
• stainless steel grating
• roller lock, stainless steel handle
• stainless steel panels on the bottom of the leaf or at handle height
• additional hinge type T
• version 01, 02, 03: stainless steel window frame
  *Contact by email.
