The wooden pine frame of the door leaf with reinforced steel profile and oak veneer surface ensures a perfect combination of functionality and aesthetics.
SATURN outdoor doors are a combination of the best materials, guaranteeing the highest quality of doors for outdoor use.
Heat transfer coefficient: Ud=1.1 W/m2K*
PN-EN 14351-1+A1:2010
Burglary protection class EN 1627 RC2
The filler is a thermal insulation layer.

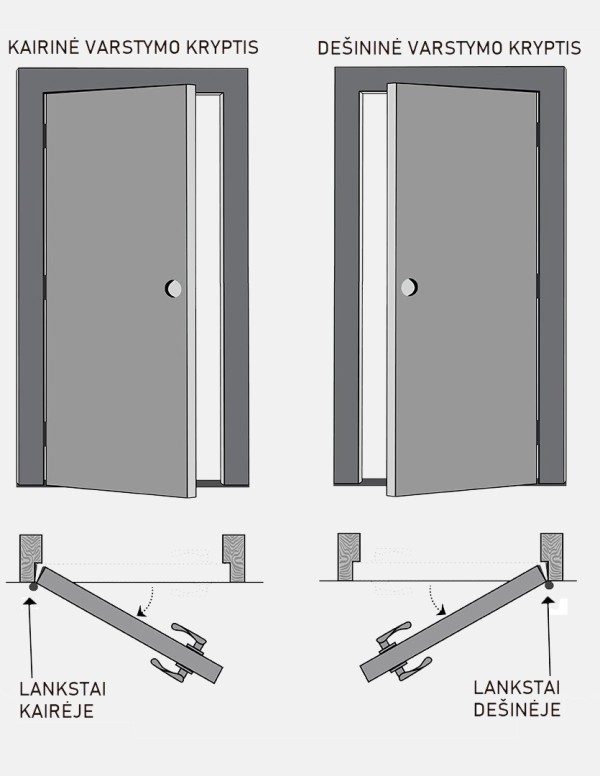

Opening direction: External - left/right
Sash with margin.
DIMENSIONS
"80" - recommended opening width x height: 960 x 2110 mm.
"90" - recommended opening width x height: 1060 x 2110 mm.
"100" - recommended opening width x height: 1160 x 2110 mm.
SET INCLUDED
Wooden door frame 100x60 mm
Oak lacquered threshold with aluminum profile
Anti-burglary system
Double sealing system (on the sash and frame perimeter)
Single-chamber with Chromatech Ultra warm frame with anti-burglary class P4
Adjustable screw hinges in three planes, silver color - 4 pcs.

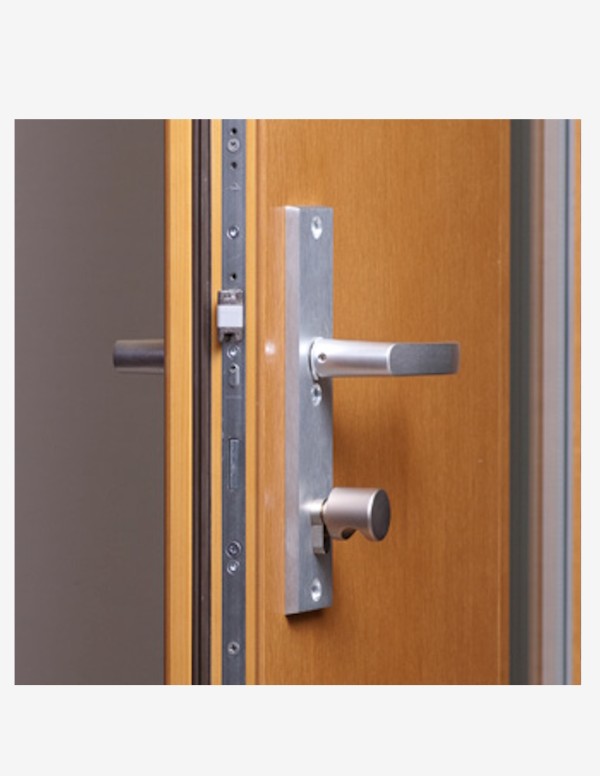

FUHR four-point lock

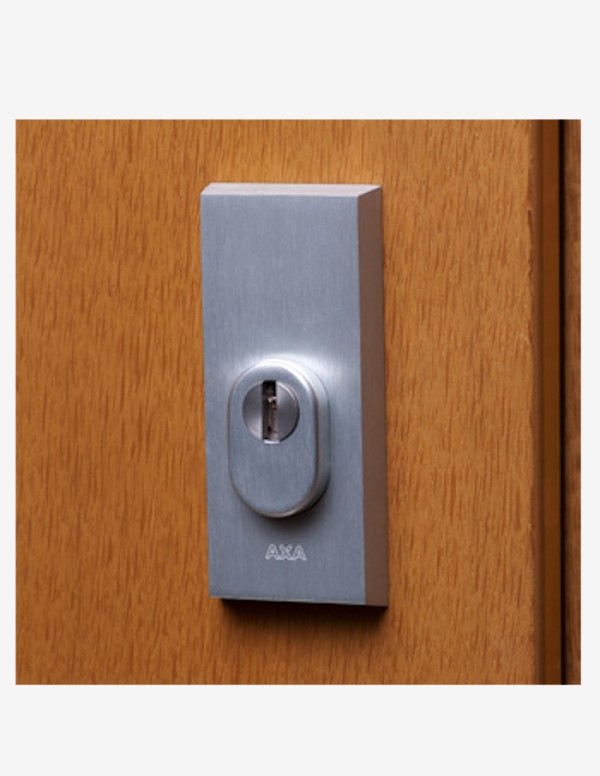

GARDA handle, cylinders with class 6 lock protection
STANDARD COLORS
Covering paint: Brown NCS S 8010-Y90R; White RAL9016; Anthracite RAL7016; Gray RAL7047.
Clear paint - pine: Light teak; Dark teak; Walnut tree; Impregnant; Aged oak; Aged olive tree; Iroko; Cherry; Old pine; Cypress; Stone pine; Afromosia; Mahogany; Aged teak.
- Door leaf type
- Rebated
- Coating
- Lacquered
Painted - Height with frame
- 209 cm
- Installation height
- 211 cm
- Width with frame
- 93,2 cm
103,2 cm
113,2 cm - Installation width
- 96; 106; 116 cm
- Glass
- Clear
- Warranty
- 2 years
- Delivery time
- 20 - 30 working days
- Door leaf thickness
- 60 mm

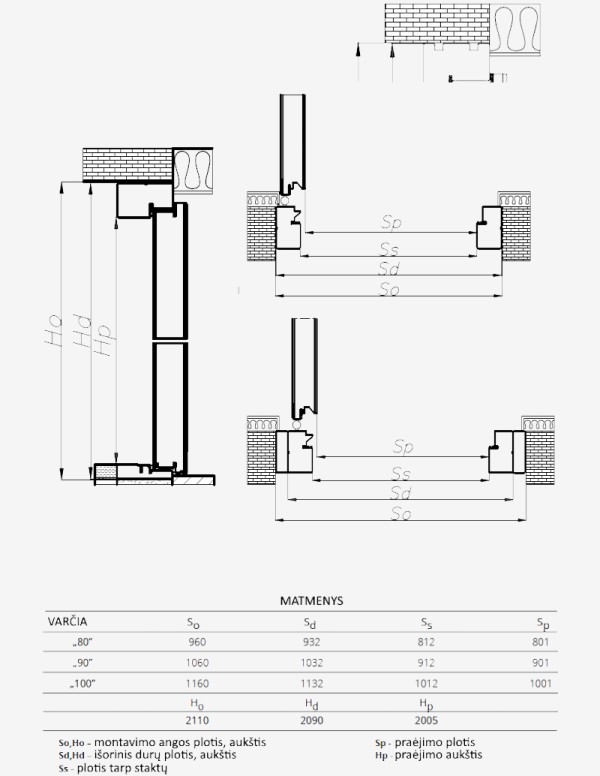

External width of door with frame:
"80" - 93,2 cm. Passage width - 80.1 cm.
"90" - 103,2 cm. Passage width - 90.1 cm.
"100" - 113,2 cm. Passage width - 100.1 cm.
External height of door with frame:
209 cm. Passage height - 200.5 cm.
Recommended width for installation:
"80" - 96 cm.
"90" - 106 cm.
"100" - 116 cm.
Recommended height for installation:
211 cm.
GROUP I:
RAL 6020 7002 7042 8000 9002
GROUP II:
RAL 1000 1001 1002 1012 1013 1014 1015 1020 3011 3016 4002 4006 5001 5002 5005 5007 5008 5009 5010 5012 5013 5015 5017 5019 5022 5024 6000 6001 6004 6005 6007 6009 6012 6013 6014 6015 6016 6021 6022 6024 6026 6028 6029 6032 6034 7000 7001 7003 7004 7005 7006 7008 7009 7010 7011 7012 7013 7015 7016 7021 7022 7023 7024 7026 7030 7031 7032 7033 7034 7035 7036 7037 7038 7039 7040 7043 7044 7045 7046 7047 8001 8003 8007 8008 8011 8014 8015 8016 8017 8019 8022 8023 8025 8027 8028 9001 9010 9016 9018
GROUP III:
RAL 1011 1021 1027 1037 2011 3009 3012 3013 3014 3015 4010 5003 5004 5011 5014 5018 5021 6002 6006 6008 6010 6017 6018 6025 6027 6033 8002 8004 8012
GROUP IV:
RAL 1007 1016 1018 1032 2000 2004 3000 3002 3017 3018 3027 4001 4004 4005 4007 4008 4009 5000 5023 6023 6011 6019 6031 8024
GROUP V:
RAL 1003 1004 1005 1006 1017 1019 1023 1024 1028 1033 1034 2001 2002 2003 2008 2009 2010 2012 3001 3020 3028 3031 6037
