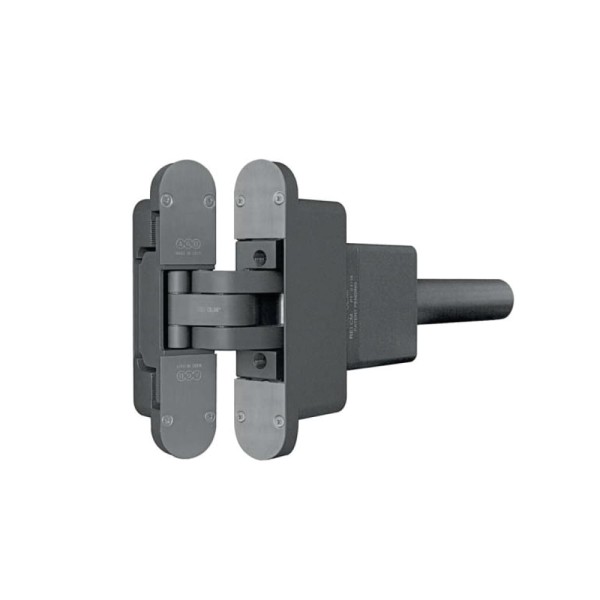

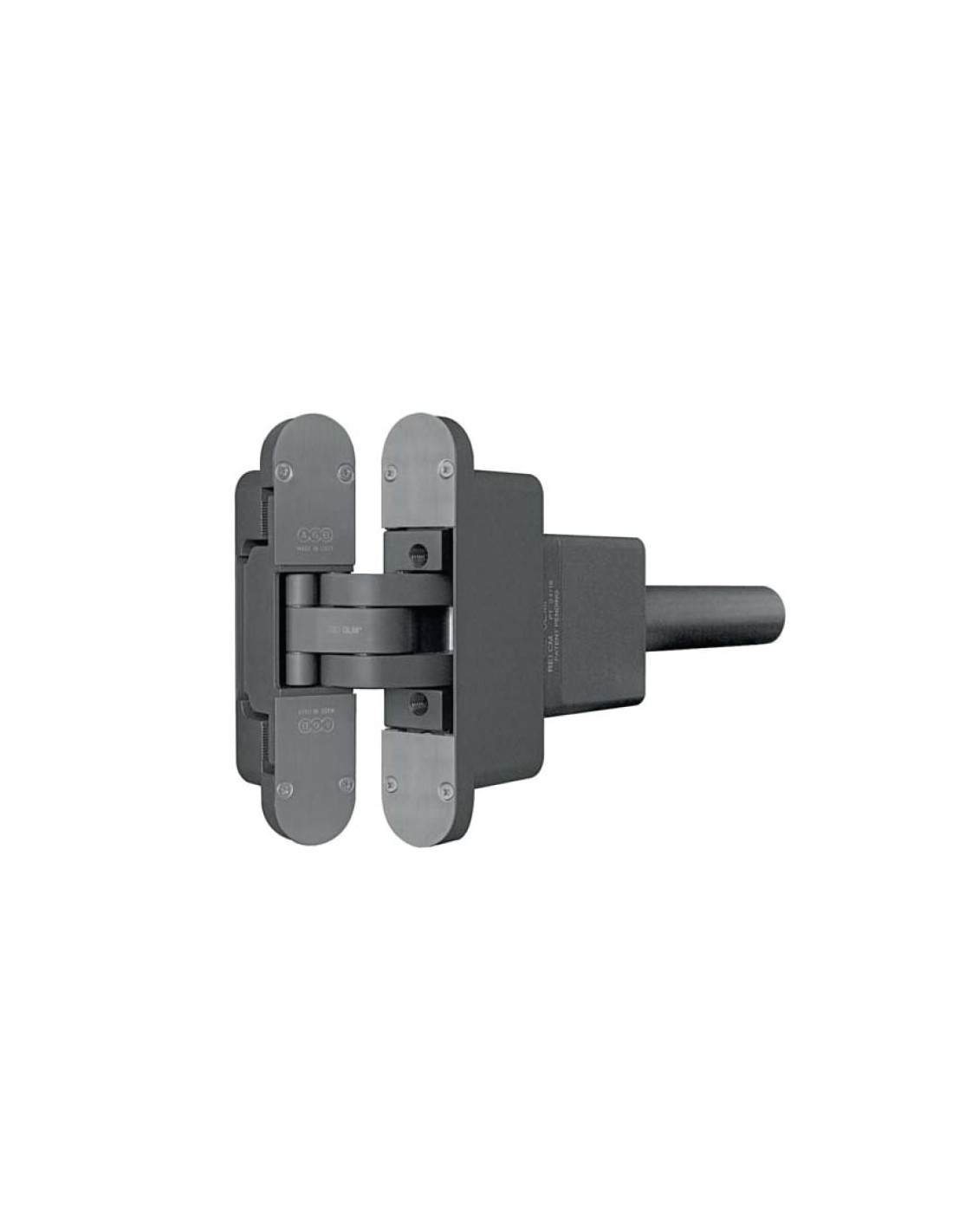

"AGB ECLIPSE" concealed hinge set with door pull function (fire-resistant)

Hinges are designed for smooth wooden or aluminum profile doors that can open at an angle of 180°.

Adjustable in three directions (independently of each other):
Adjustment: vertical +/- 2mm;
Horizontal +/- 1.5 mm;
Depth +/- 1mm.

Maximum hinge load for doors: with 2 pcs. hinges – 100 kg.,

Universal use: door opening to the left and right.

Aluminum decorative covers in various colors are designed to hide the adjustment screws.

Made of high-quality zinc alloy.

An elegant solution for the harmony of the sash and frame.

Complies with the UNI-ISO 2081 standard.

Has a fire certificate.

product quantity: Concealed hinge AGB ECLIPSE with door pull function set (fire-resistant)

Product code: V93 Category: Door hinges Manufacturer: Alban Giacomo SPA (AGB)

Colors: Black
