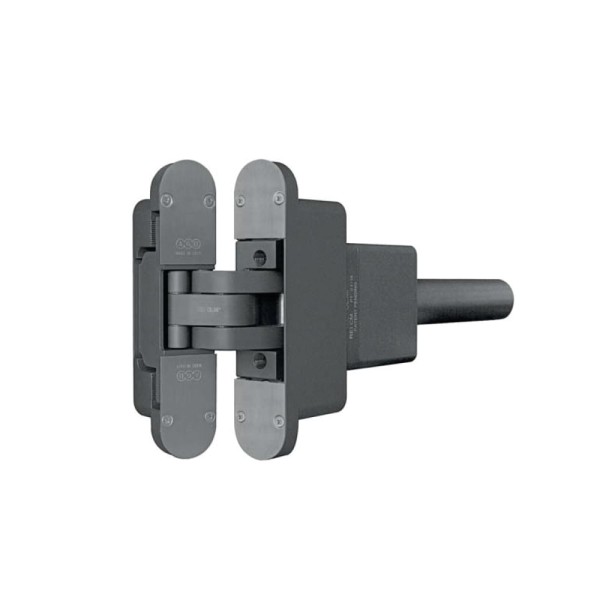

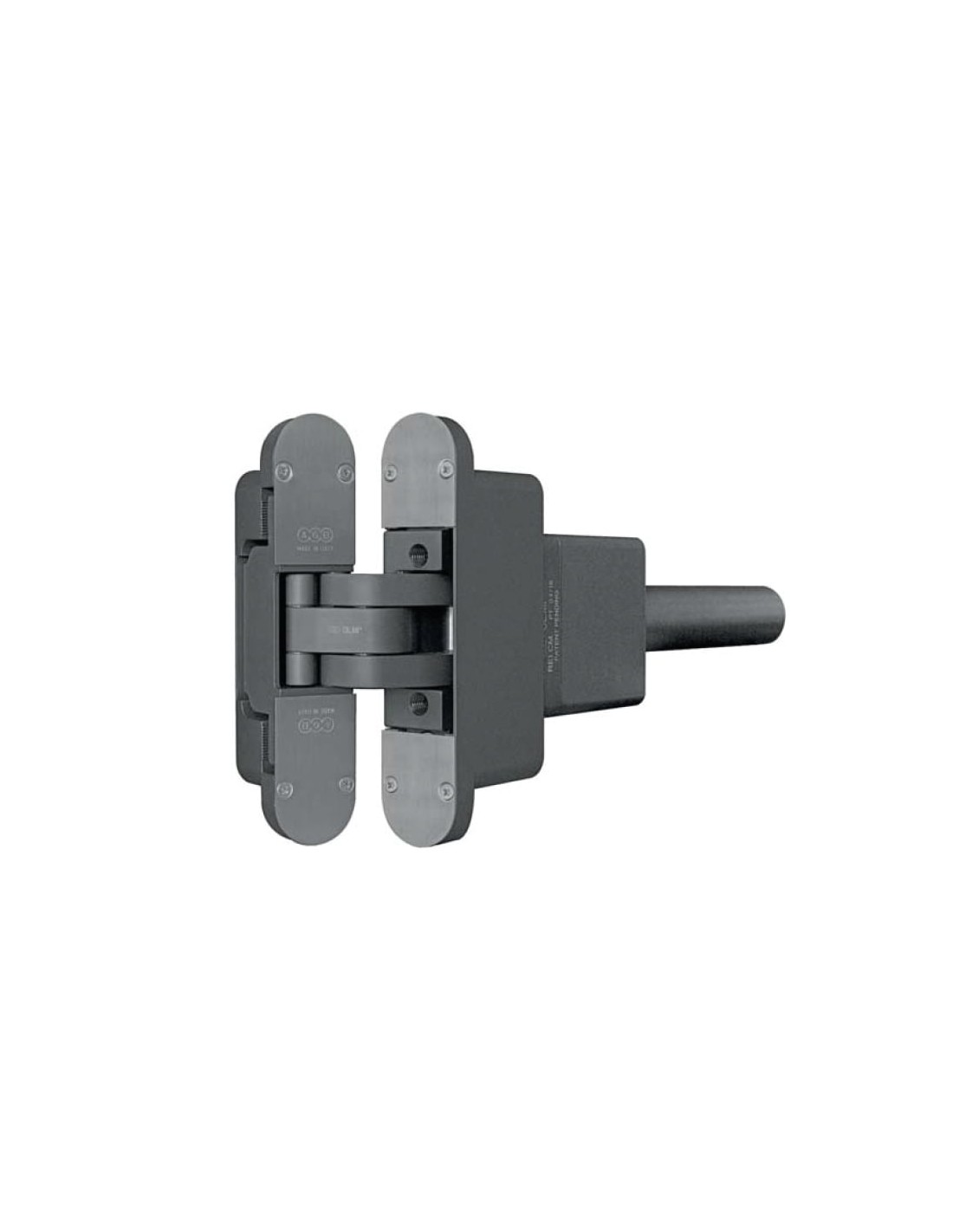

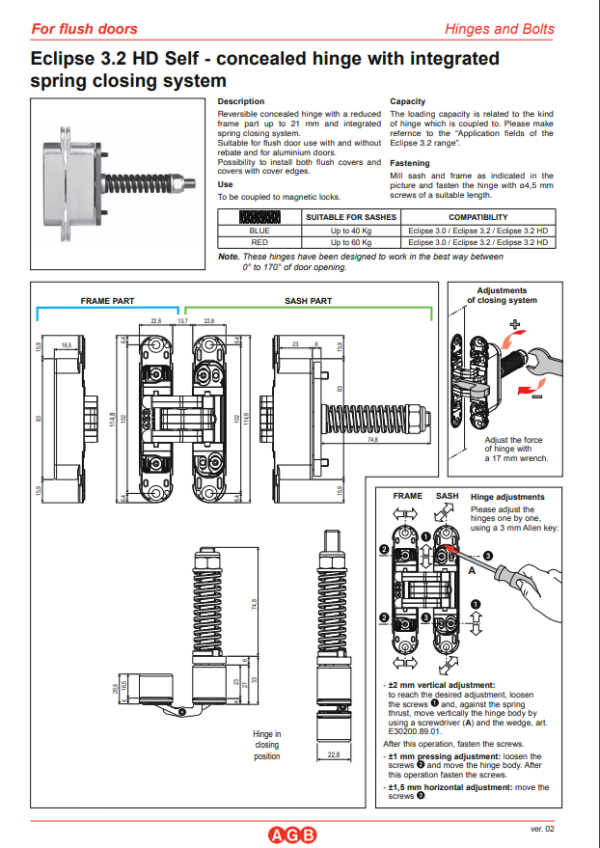

Concealed hinge "AGB ECLIPSE 3.2" SELF OCS with pull-up function for doors up to 40 kg"

Hinge with a pull-up function (spring) is designed for smooth wooden or aluminum profile doors that can open at an angle of 180°.

In doors up to 60kg. weight, the pull-up function is performed by one ECLIPSE 3.2 SELF hinge.

Standard ECLIPSE 3.2 hinges are installed together with ECLIPSE 3.2 SELF hinges and have the same dimensions. .

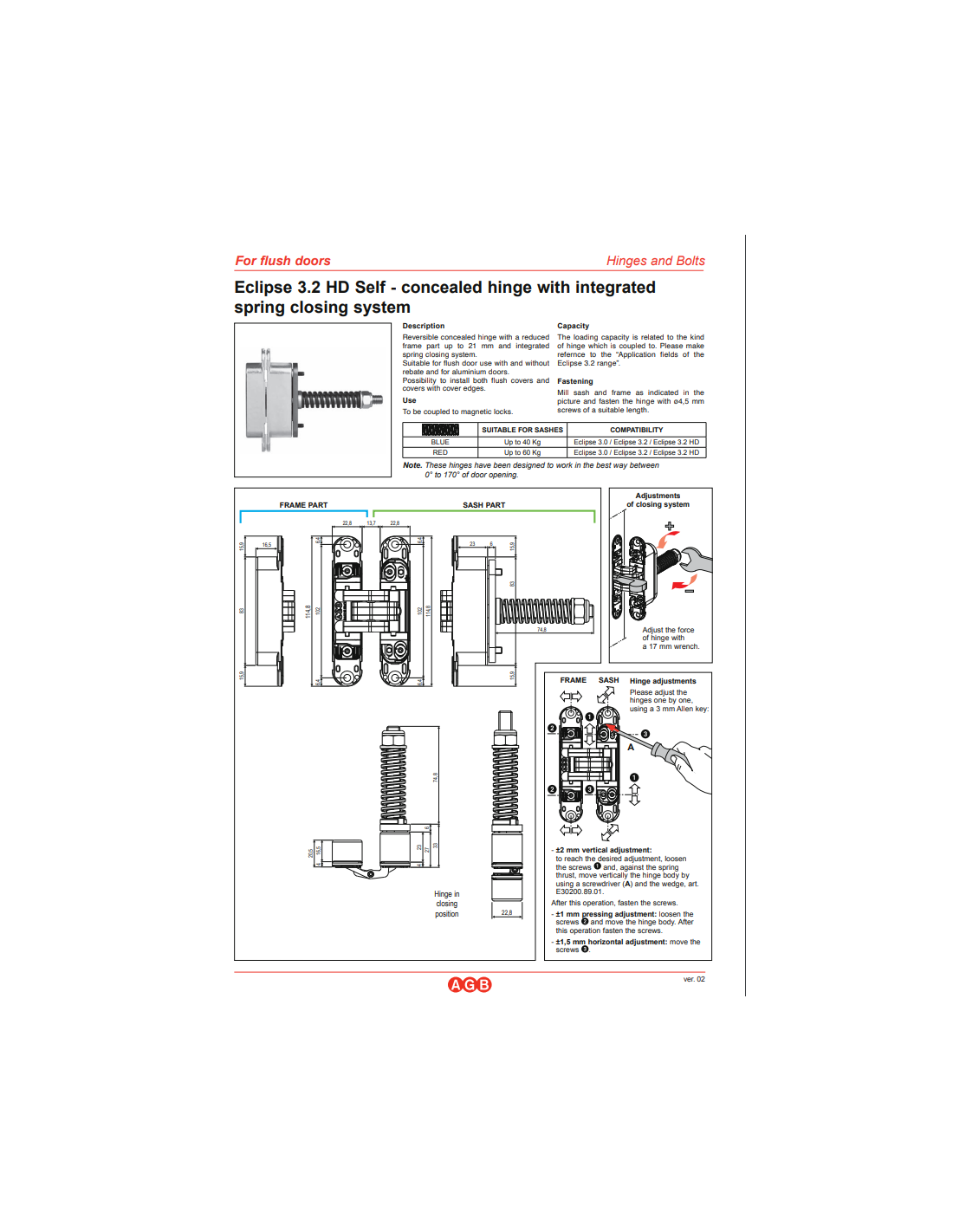

Adjustable in three directions (independently of each other):
Adjustment: vertically +/- 2mm;

Horizontal +/- 1.5 mm;

Depth +/- 1mm.

Maximum hinge load for doors: with 3 hinges - 40 kg.

Universal use: door opening to the left and right.

Various colored aluminum decorative covers are designed to hide the adjustment screws.

Made of high-quality zinc alloy.

An elegant solution for harmony between sash and frame.

Complies with UNI-ISO 2081 standard

Colors: Matt chrome
