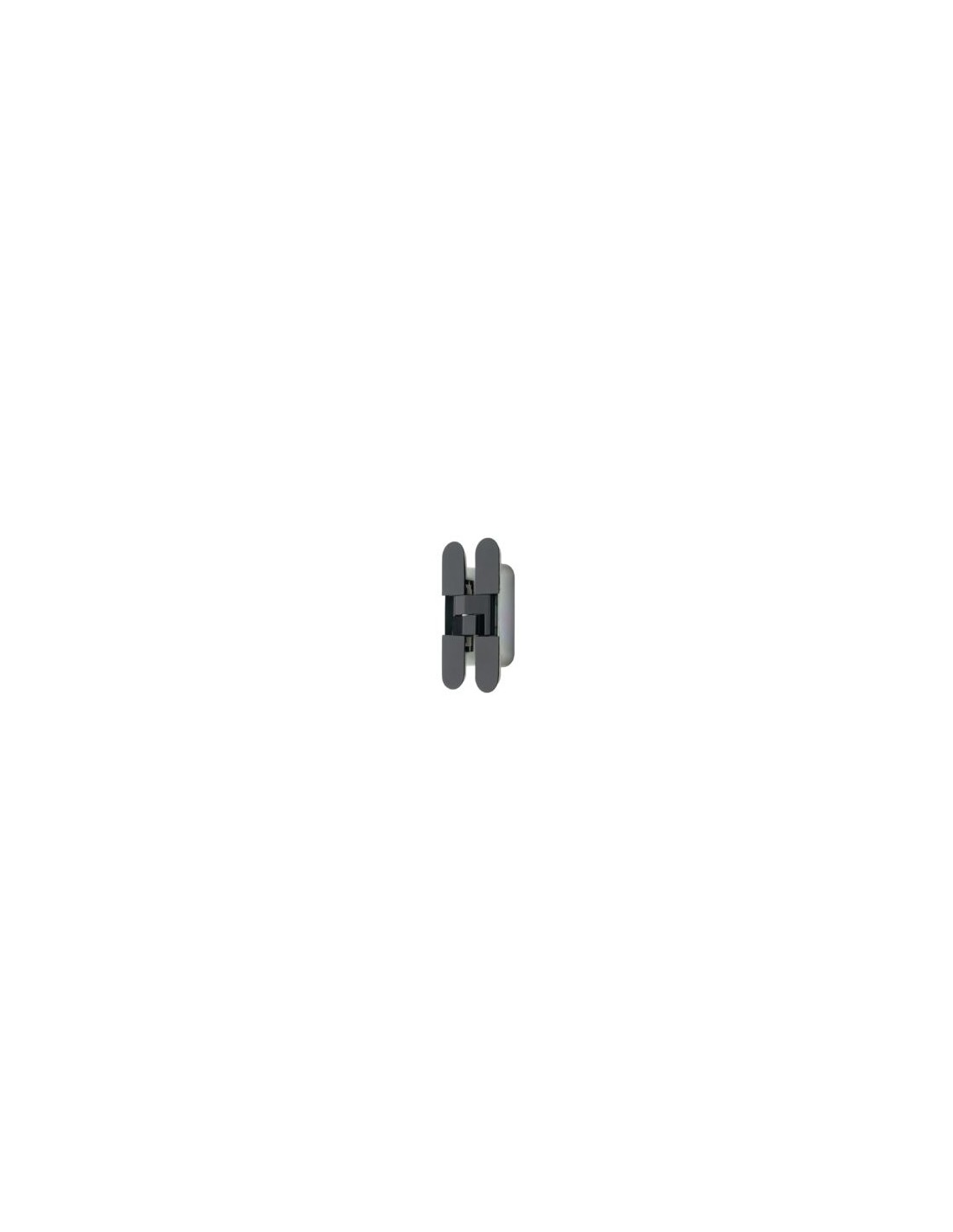

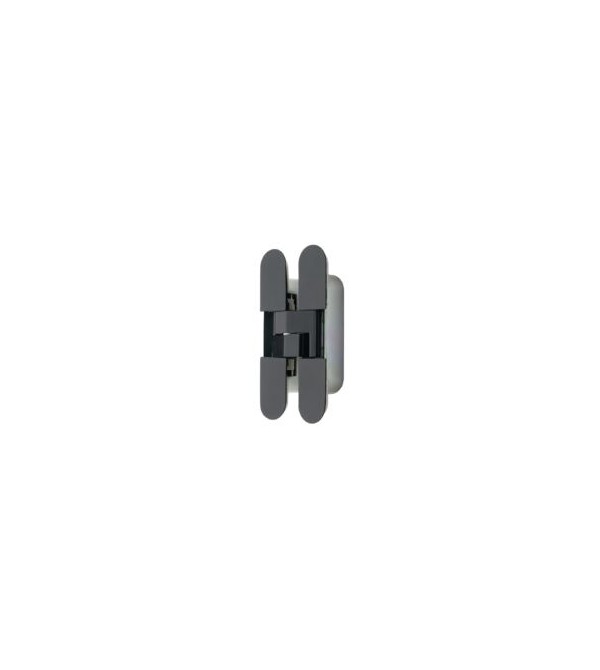

Concealed hinge "AGB ECLIPSE 3.2, HD black up to 60 kg"
Concealed hinge "AGB ECLIPSE 3.2"
Delivery time: 1 - 3 working days
Manufacturer: Alban Giacomo SPA (AGB)
Hinges are designed for flush wooden or aluminum profile doors that can open 180°.
Adjustable in three directions (independently of each other):
Adjustment: vertical +/- 2 mm;
Horizontal +/- 1,5 mm;
Depth +/- 1mm.
Maximum hinge load for doors: 2 pcs. hinges – 60 kg.,
Universal use: door opening to the left and right.
Various colored aluminum decorative covers are designed to hide the adjustment screws.
Made of high quality zinc alloy.
An elegant solution for harmony between the sash and the frame.
Complies with UNI-ISO 2081 standard.
Colors: Matt chrome
- Color
- Matte chrome
- Delivery time
- 1 - 3 working days
