Interior doors "GRAFI M1-G8"

Lacquered interior door - "GRAFI M1-G8"

Delivery throughout Europe!

Production and delivery time: 20 - 40 working days

Opening direction

Ventilation

Handles

Locking

Color

Door leaf width

Door leaf height

Door frame

Edge color

€565.00

Tax included

Product Options

Color

Edge color

Door leaf height

Door leaf width

Opening direction

Door frame

Ventilation

Handles

Locking

A children's room with a door on which a mini fish invites you in, or a teenage room with a door like a spaceship. You will find all these patterns and much more in the "GRAFI" collection. In the collection, you can additionally choose the type of varnish that will cover the sash and frame. You can choose between Matt and Glossy varnish.

COATING: Door leaf surface coated with the primer material, overprinted with the pattern and varnished (color of the door leaf primed surface - white) matte, or gloss lacquer.

DESCRIPTION OF THE LEAF
The frame of the door leaf is made of MDF, stabilising insert "honeycomb". The filling for glossy varnished doors is perforated chipboard (it is not necessary to choose filling when ordering gloss coated doors). Door leaf non-rebated.

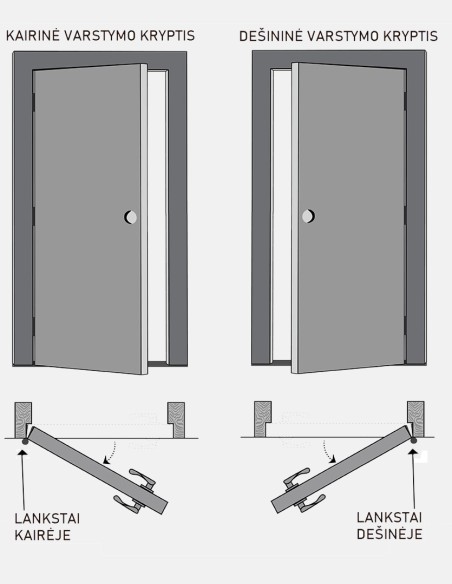

OPENING DIRECTION: Selectable for "left" or "right" opening.

DESCRIPTION OF THE FRAME
The door frame is made of high quality MDF. Frame with sealing gasket. Ready for installation.
The adjustable frame is equipped with architraves on both sides, the width of the frame can be selected according to the thickness of the wall, it can be used for walls with a thickness of 75-320 mm.

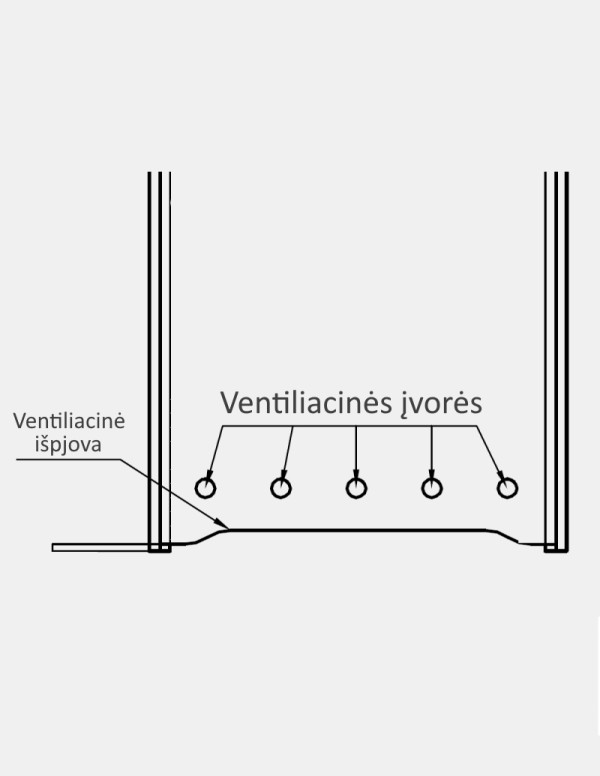

VENTILATION UNDERCUT: A total ventilation area of 0.022 m2 is ensured under the door.

COLORS: White gloss lacquered; White matte lacquered.

IN STANDARD DOOR SET
Non-rebated door leaf, frame with sealing gasket, magnetic lock, concealed hinges.
The adjustable frame comes complete with architraves on both sides.

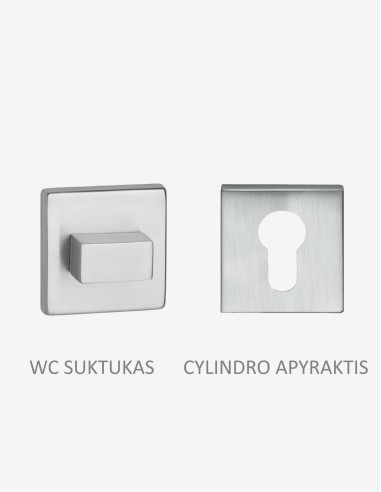

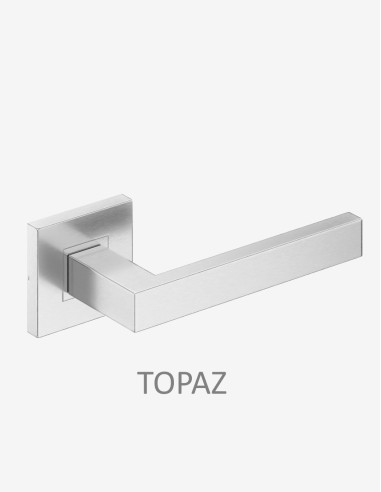

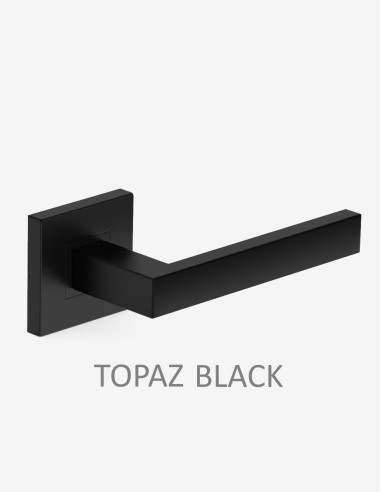

ADDITIONALLY CAN BE ORDERED: A set of handles; WC lock; Cylindrical lock with collar; Ventilation undercut; Ventilation sleeves.

Door leaf type: Non-rebated
Coating: Lacquered
Door leaf height: 198,3 cm
204,3 cm
Height with frame: 200,4 cm | 206,4 cm
Installation height: 201 - 207 cm | 207 - 213 cm
Door leaf width: 64,4 | 74,4 | 84,4 | 94,4 cm
Width with frame: 67,1 | 77,1 | 87,1 | 97,1 cm
Installation width: 70 - 80 cm | 80 - 90 cm | 90 - 100 cm | 100 - 110 cm
Glass: Without glass
Hinges: Concealed hinges
Warranty: 2 years
Delivery time: 20 - 30 working days

DOOR LEAF DIMENSIONS
The door leaf of this model are produced in heights of 1983 mm and 2043 mm, and can be installed in openings with a height of 2010 - 2130 mm.
Height: 198,3 cm; 204,3 cm
Width: 64,4 cm; 74,4 cm; 84,4 cm; 94,4 cm.
Thickness: 4 cm.

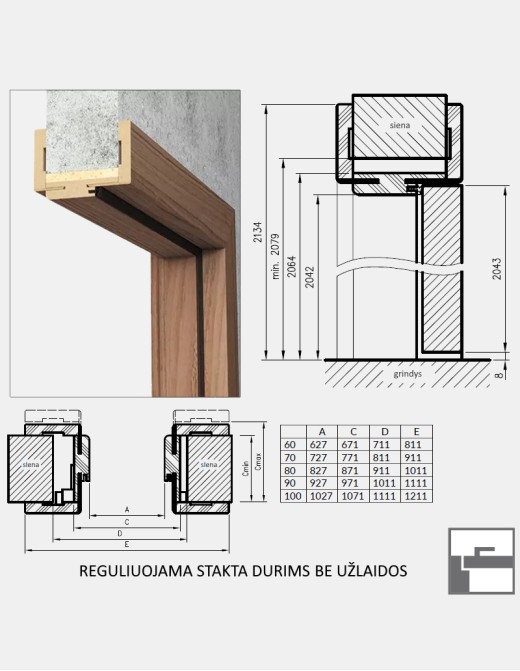

ADJUSTABLE FRAME DIMENSIONS
Width: 7,5 - 32 cm. (for walls up to 32 cm thick. For thicker walls, it can be equipped with a frame extension)
Thickness: 2,2 cm

EXTERNAL DIMENSIONS OF THE LEAF WITH ADJUSTABLE FRAME
Height: 206,4 cm. (204,3 cm height door leaf)
Height: 200,4 cm. (198,3 cm height door leaf)
Width: 67,1 cm; 77,1 cm; 87,1 cm; 97,1 cm
*RECOMMENDED HOLE DIMENSIONS:
*Height: min. 207 cm (204,3 cm height door leaf)
*Height: min. 201 cm (198,3 cm height door leaf)
*Width: min. 71 cm; 81 cm; 91 cm; 101 cm

DESCRIPTION OF ARCHITRAVES
Adjustable "L" shaped architraves are made of MDF.
Width: 8 cm.
Thickness: 1,6 cm.

EXTERNALLY ADJUSTABLE FRAME ARCHITRAVES DIMENSIONS
Height: 213,4 cm (204,3 cm height door leaf)
Height: 207,4 cm (198,3 cm height door leaf)
Width: 81,1 cm; 91,1 cm; 101,1 cm; 111,1 cm.
