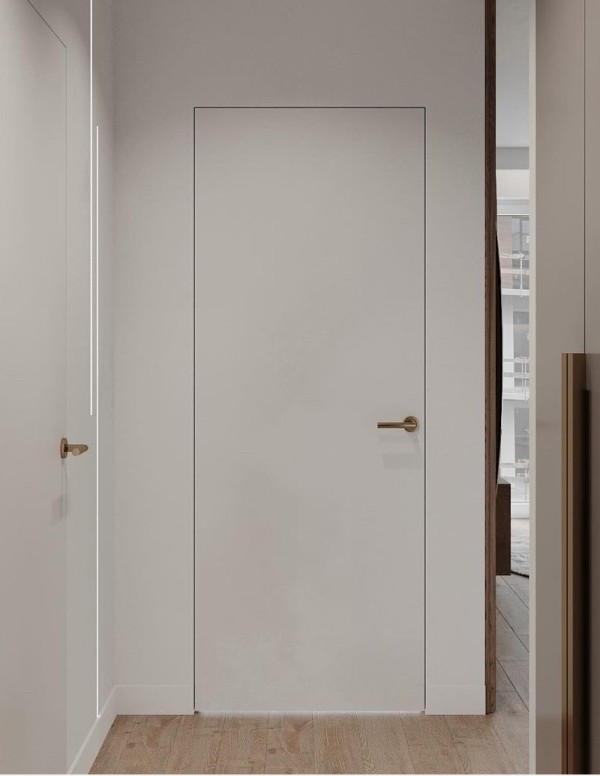

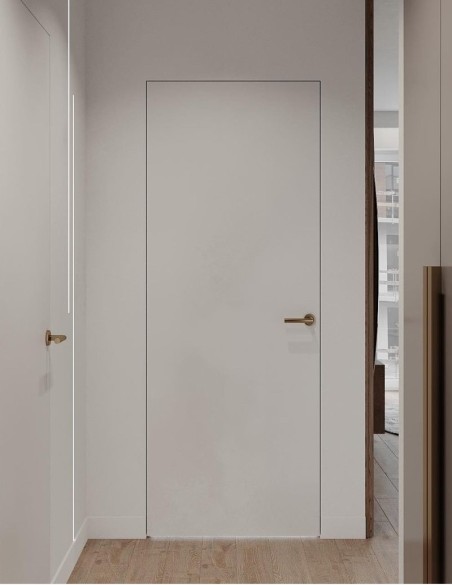

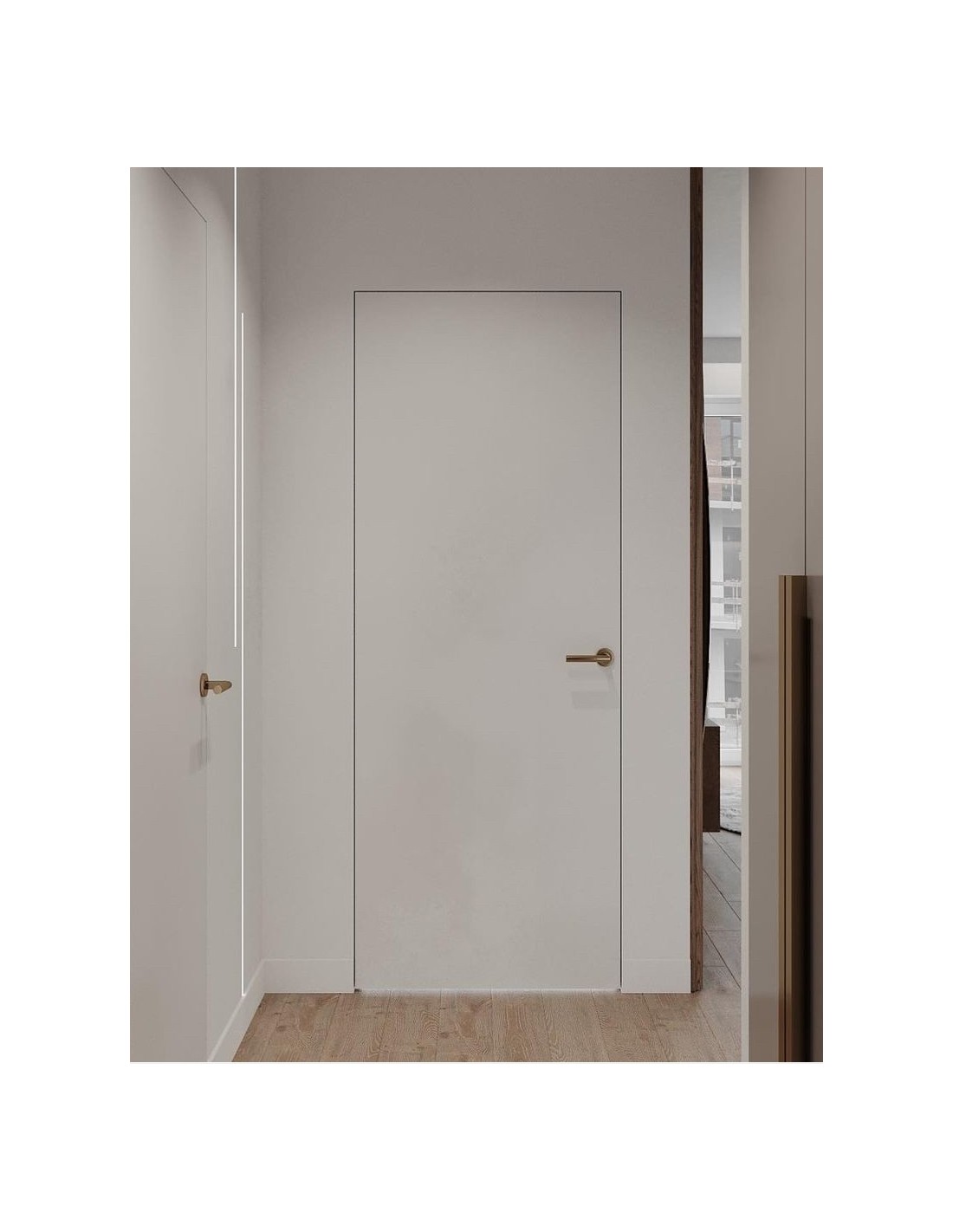

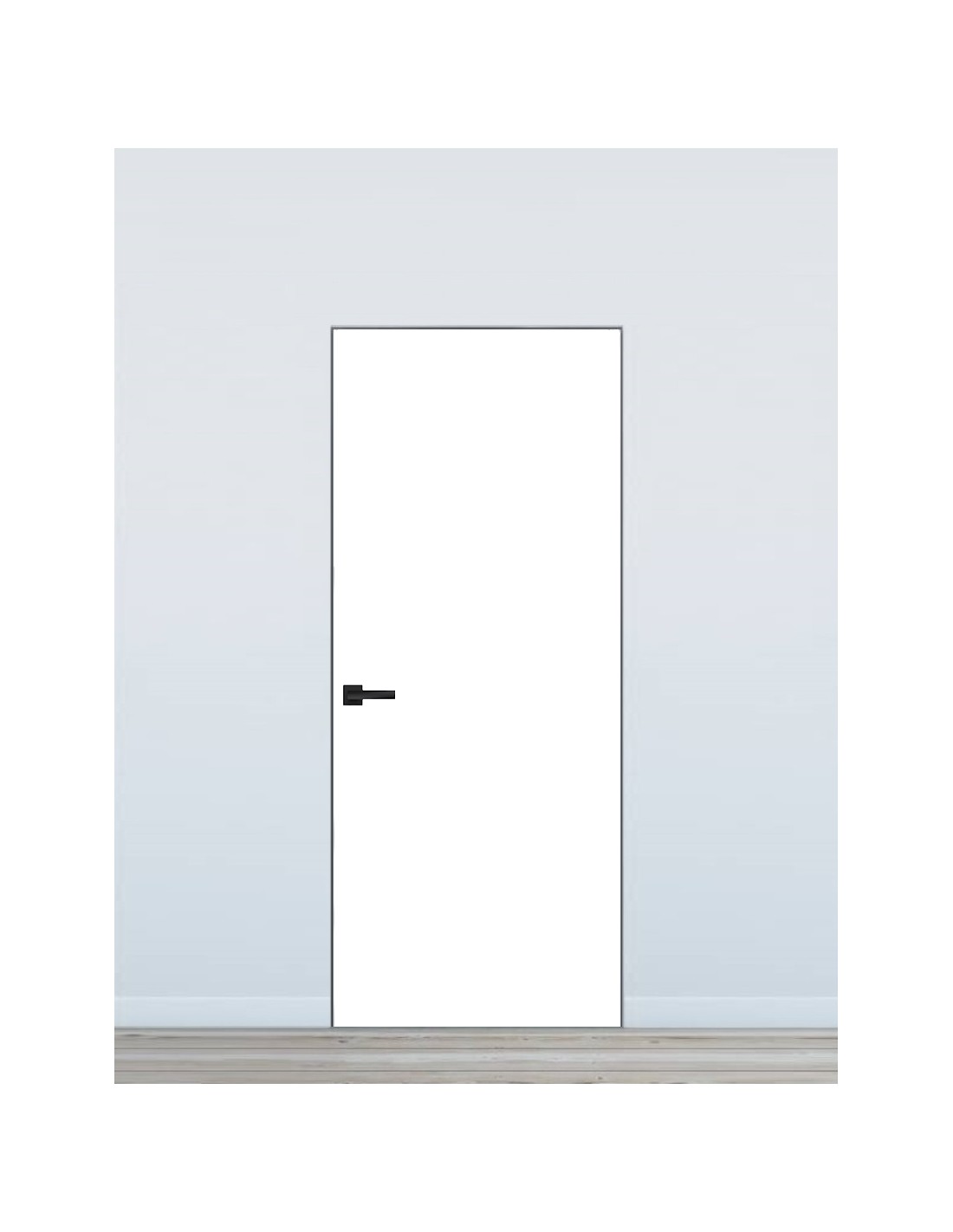

Concealed door "HARMONY" 192-203 cm Painted

The "HARMONY" collection is a door whose leaves can be without a rebate (opens outward) or with a rebate (opens inward). The leaf structure is made of coniferous wood, covered with HDF panels on both sides. Door leaf filler "honeycomb" cardboard, perforated or full chipboard. Class 2 of mechanical resistance requirements according to PN-EN1192:2001. The products are of high quality, have been tested by well-known research units and meet the strictest standards. The applied and certified quality management system conforming to the international ISO 9001 standard is an objective proof that the offered quality will be maintained. Certified by FRC®.

COATING: The door leaf is painted according to the RAL and NCS color palette.

CONSTRUCTION OF THE LEAF
The structure of the leaf allows it to flush with the frame.  The construction of the leaf consists of coniferous wood frame covered with HDF plates on both sides. The filling of the leaf is a cellular cardboard "honeycomb" type, perforated chipboard or full chipboard in-fill. Wide surfaces of door leaf are primed and ready for painting or paperhanging (e.q. in the color of the walls). The door leaf is designed in such a way that it can be installed flush with the door frame surface. *HARMONY door leaf trimmed every 10 mm is available.
*Single leaf door with hidden frame HARMONY with solid chipboard in-fill, equipped with a dropping seal, has the following parameters sound insulation power Rw=27 dB.

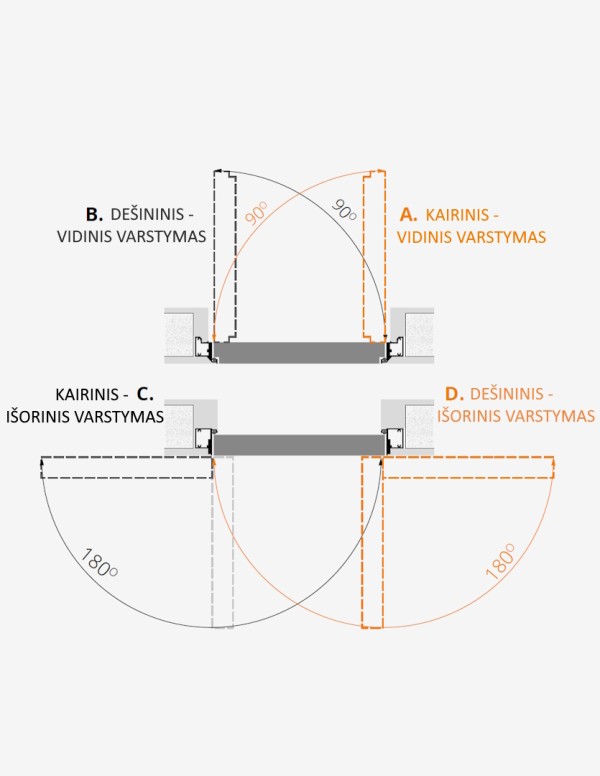

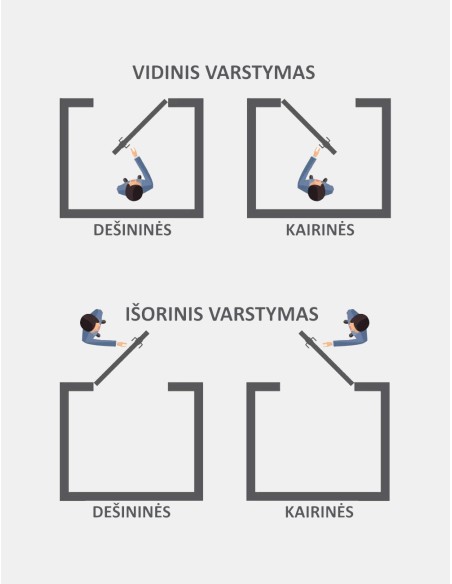

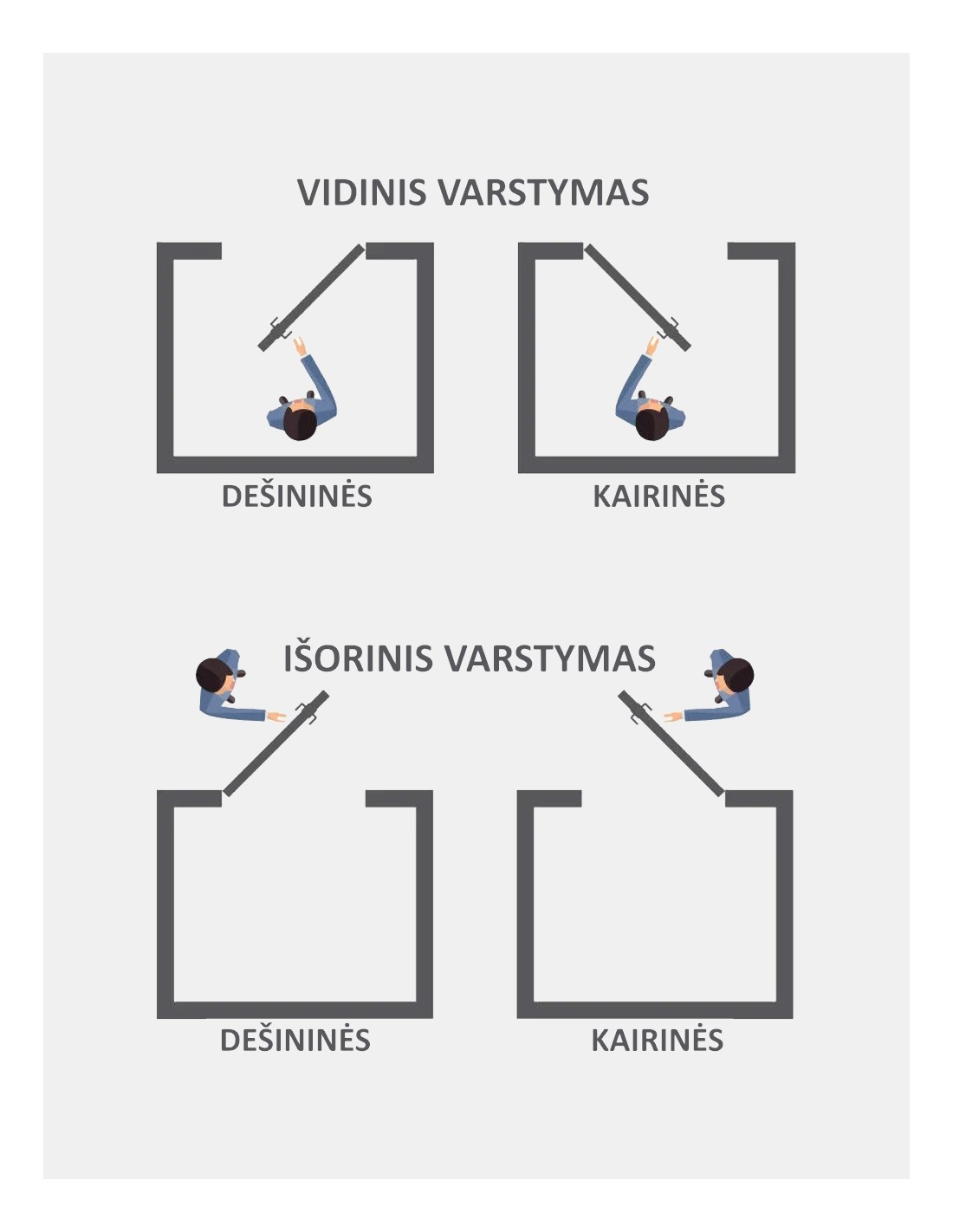

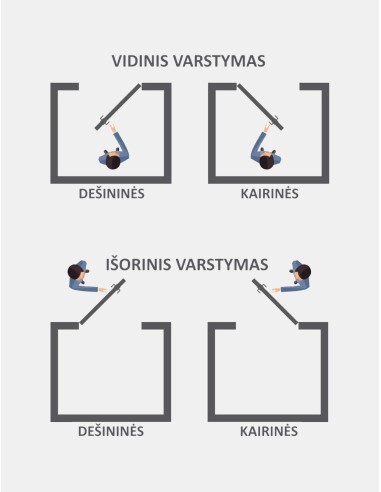

OPENING DIRECTION: Selectable for "left", "right" and "Inward", "Outward" opening.

DOOR LEAF DIMENSIONS
Height: 202/203 cm.
Width: 62 cm; 72 cm; 82 cm; 92 cm.
Thickness: 4 cm.

FRAME DESCRIPTION
The aluminum door frame is invisible after installation, built into openings or treated with plasterboard panels. After finishing the masonry, only the cut of the frame is visible, ready for painting, for example, the color of the walls.

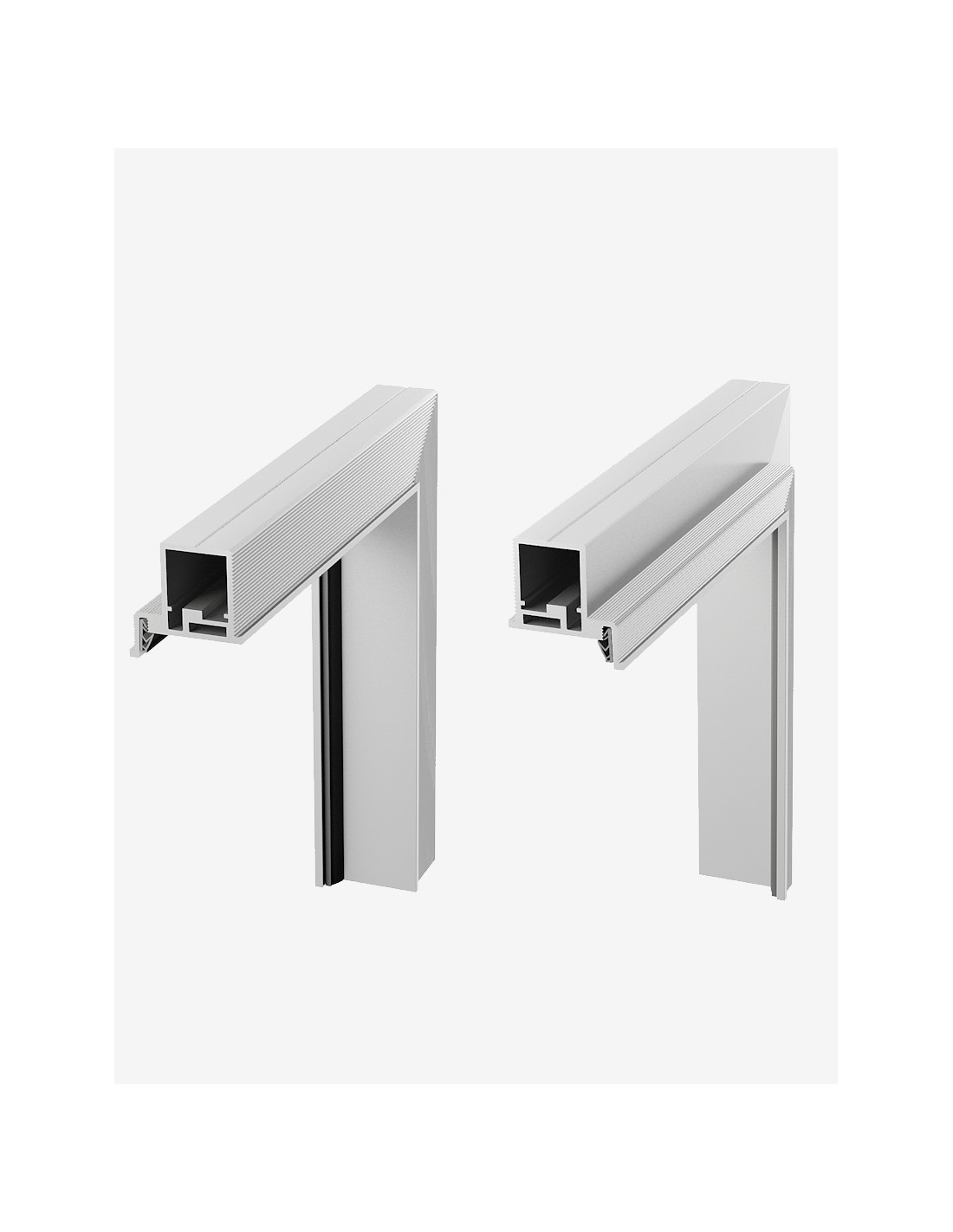

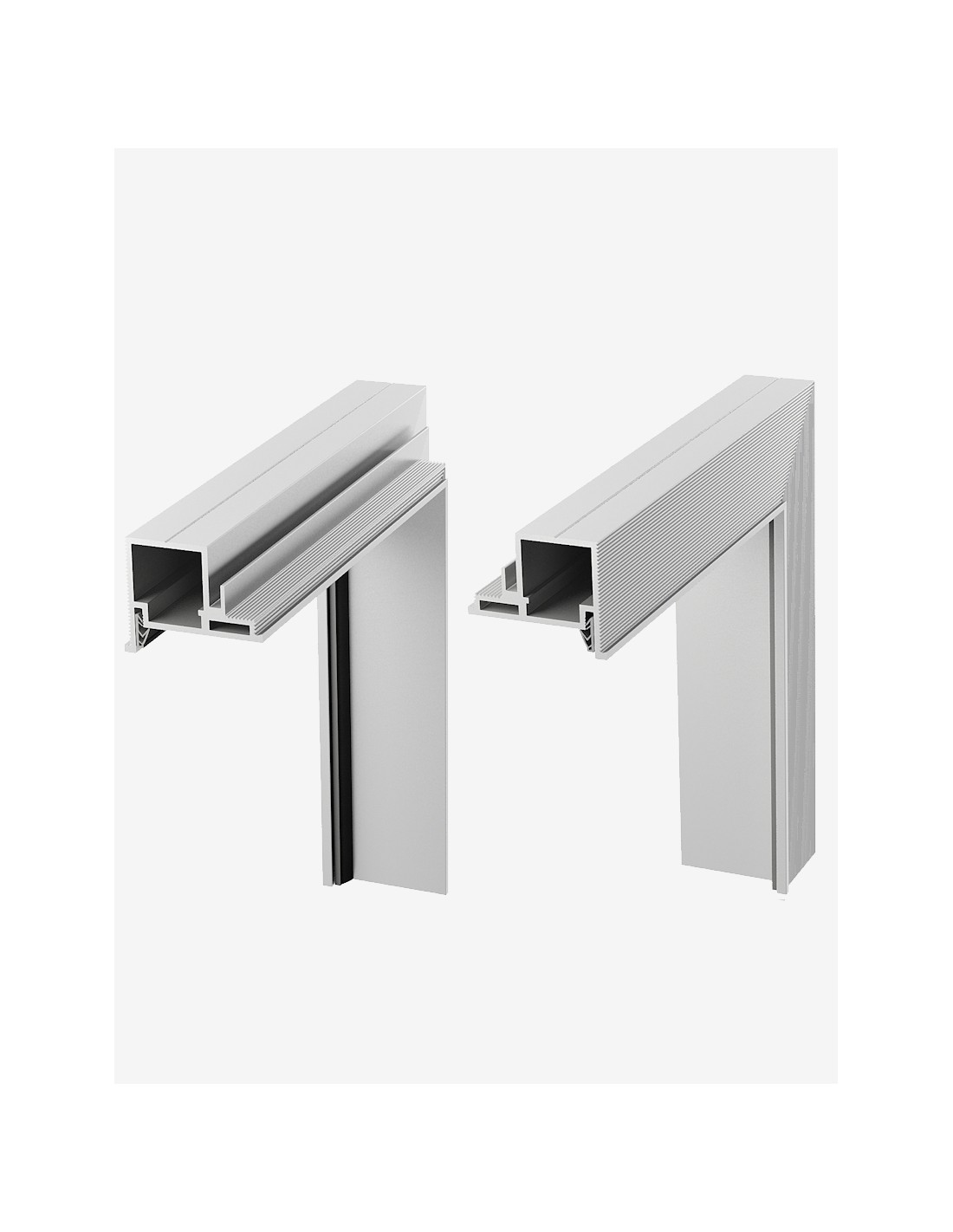

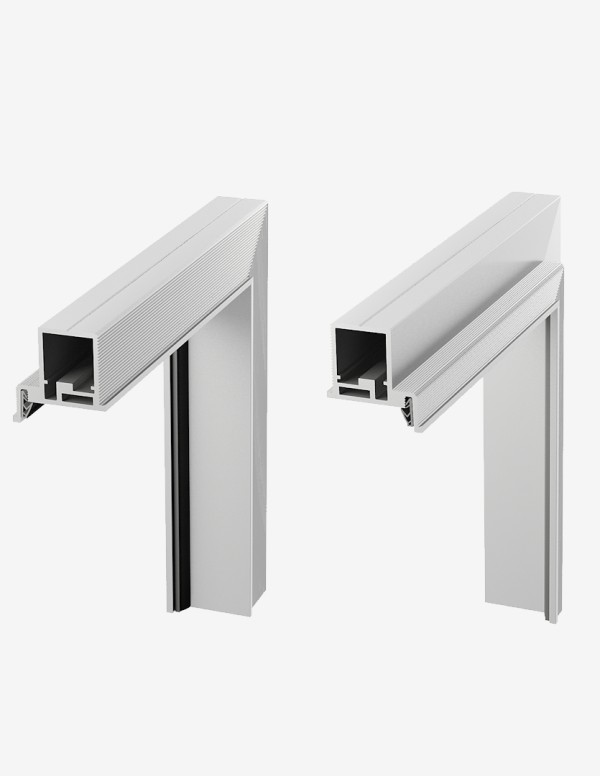

Concealed door frame for inwards or outwards opened doors. Made from anodised aluminum, raw aluminium for do-it-yourself painting in the colour of the wall or painted in white (RAL 9003), black (RAL 9005); grey (RAL 7047), sand (NCS S 2005-Y50R).
*door frame available with averse or reverse action electric strike – contact with the Sales Department.

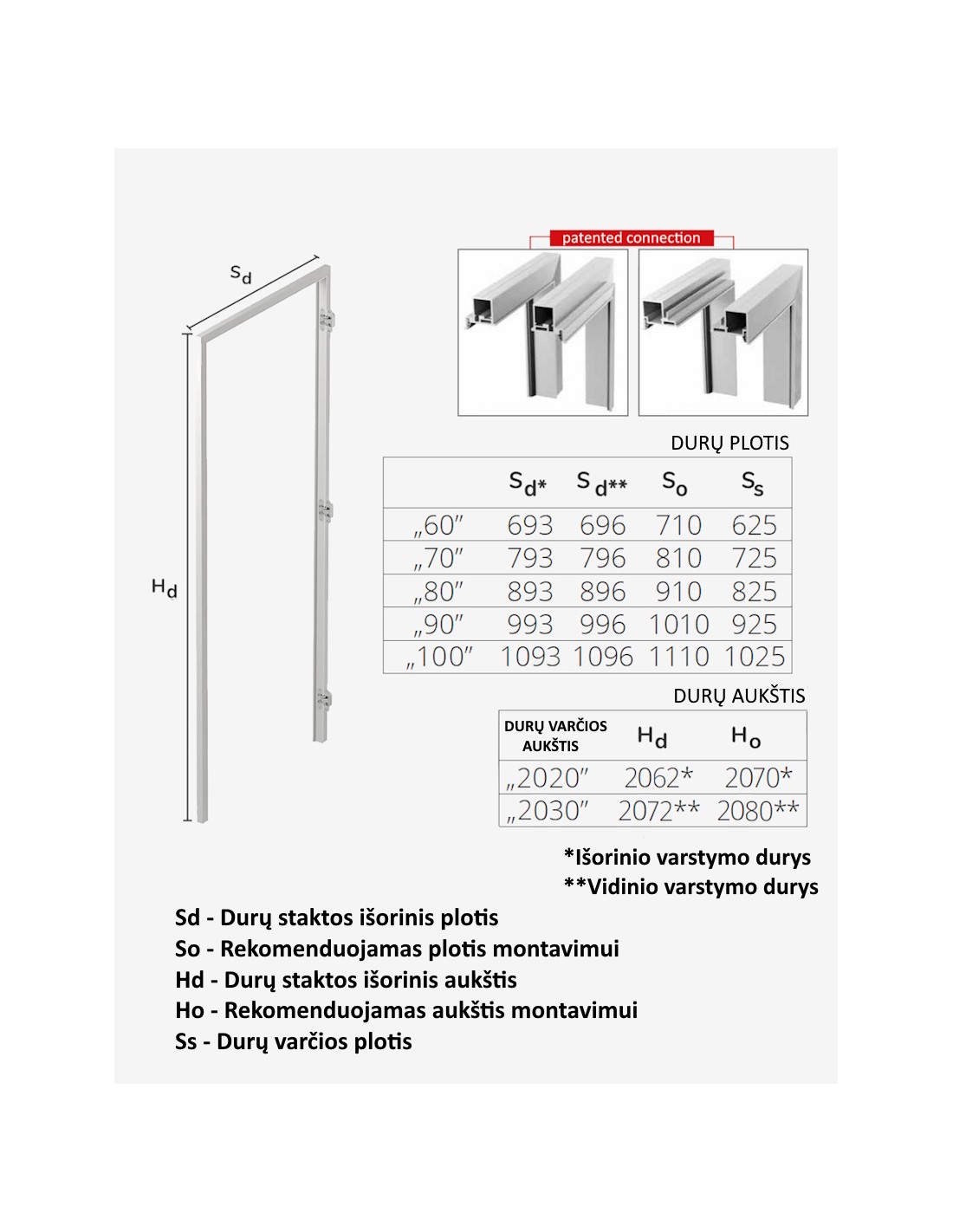

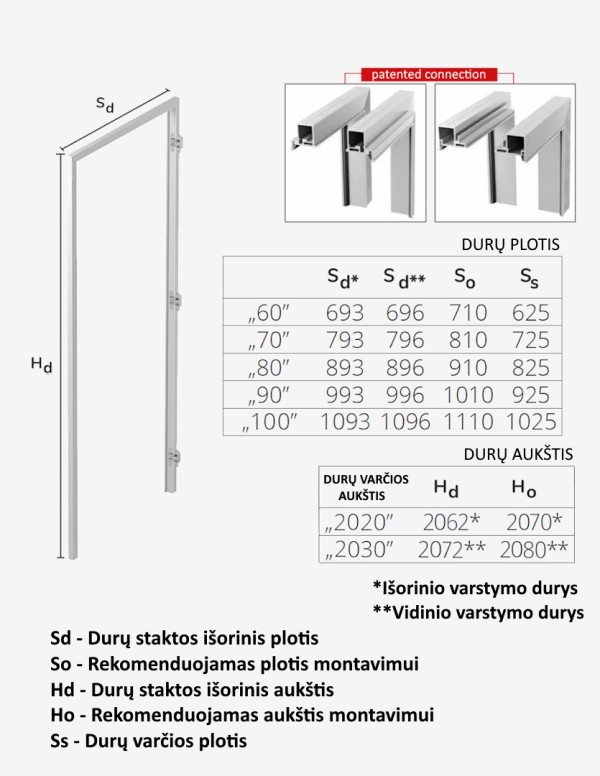

OUTWARD FRAME DIMENSIONS
Width: 69,3 cm; 79,3 cm; 89,3 cm; 99,3 cm; 109,3 cm.
Height: 206.2 cm.

INWARD FRAME DIMENSIONS
Width: 69,6 cm; 79,6 cm; 89,6 cm; 99,6 cm; 109,6 cm.
Height: 207.2 cm.

IN STANDARD DOOR SET
Door leaf, aluminum frame, magnetic lock, hidden hinges.

ADDITIONALLY CAN BE SELECTED: A set of handles; WC lock; Cylindrical lock with cover.
